Erich Jaeger alternative
251280
3P/24V(25A) Plug (without standard)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-PS-000122
3-pole 24V plug
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
24V3P
ConnectorRoute price
on request
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
Bosch
F032182374ZDB
Europart
4830251280
Herth & Buss
51305593
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application

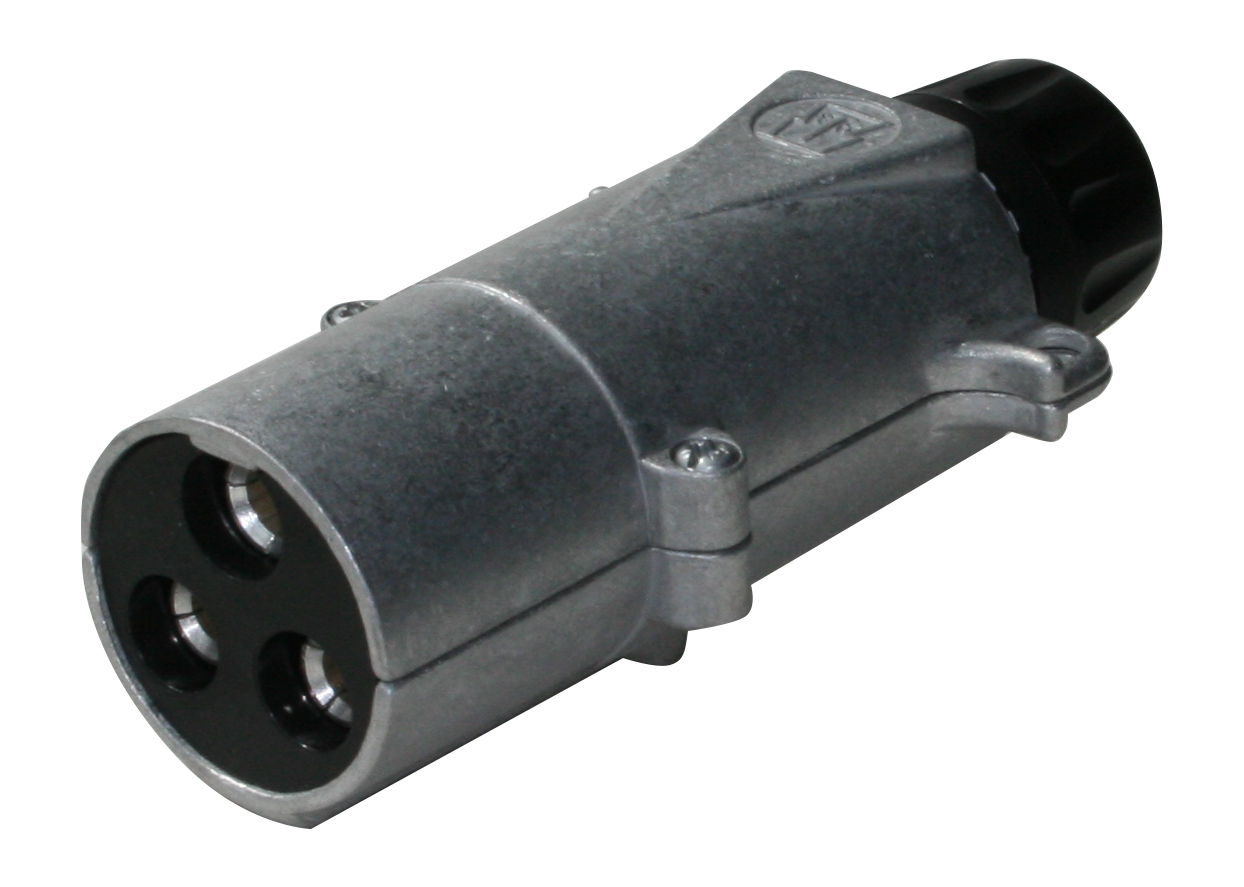

Erich Jaeger 251280 is 3P/24V(25A) Plug (without standard). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. without standard and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is without standard, 24V, 3P and agriculture, commercial vehicles.
What does 251280 do?
This page treats 251280 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: For cable diameter: 11,40mm - 14,00mm, Contact termination: screw contact, Contact surface: silver (Ag), Cable outlet: cap nut, Type of seal: sealing plug, Housing material: break-proof metal and Housing color: silver-colored. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 151296 3P/24V(25A) Socket (without standard), 251249 3P/6-24V(10A) Cable (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 151076 3P/6-24V(16A) Socket (without standard), 611135 5P/6-24V Coil (without standard). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 251280
- Product family
- plug
- Category
- plug
- Standard
- without standard
- Voltage
- 24V
- Poles
- 3P
- Industry
- agriculture, commercial vehicles
- Related product families
- component
- For cable diameter
- 11,40mm - 14,00mm
- Contact termination
- screw contact
- Type of seal
- sealing plug
- Contact insert color
- black
- Housing color
- zilverkleurig
Questions about this reference
Can Erich Jaeger 251280 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- For cable diameter
- 11,40mm - 14,00mm
- Contact termination
- screw contact
- Type of seal
- sealing plug
- Contact insert color
- black
- Housing color
- zilverkleurig
- Product group
- plug
- Standard
- without standard
- Industry
- agriculture, commercial vehicles
- Rated current / permanent load [in A]
- 25
- Voltage [in V]
- 24
- Packaging
- retail bag
- Type of seal
- sealing plug
- Contact surface
- silver (Ag)
- Housing color
- silver-colored
- Housing material
- break-proof metal
- Cable outlet
- cap nut
- Contact termination
- screw contact
- Contact version
- contact sleeve
- No. of poles
- 03
- Contact: for max. wire cross section [in mm²]
- 6,00
- For cable diameter
- 11,40mm - 14,00mm
