Erich Jaeger alternative

611135

5P/6-24V Coil (without standard)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

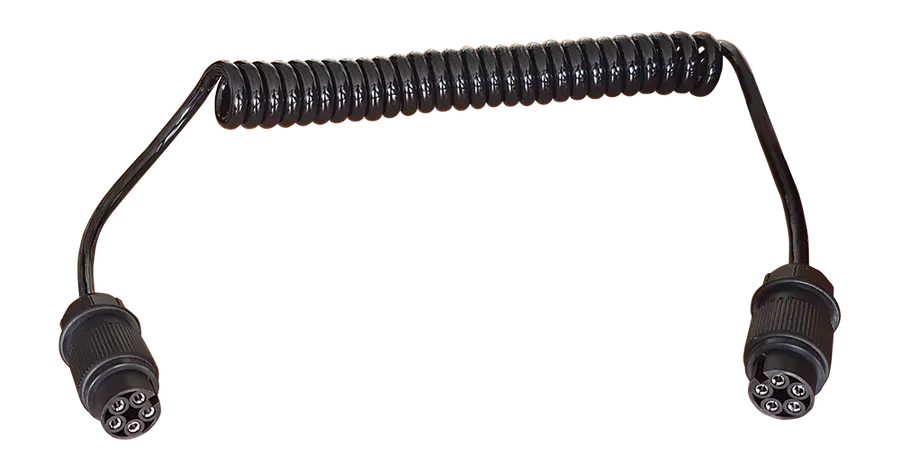

Erich Jaeger 611135 is 5P/6-24V Coil (without standard). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. without standard and 6-24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is without standard, 6-24V, 5P and commercial vehicles, agriculture.

What does 611135 do?

This page treats 611135 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

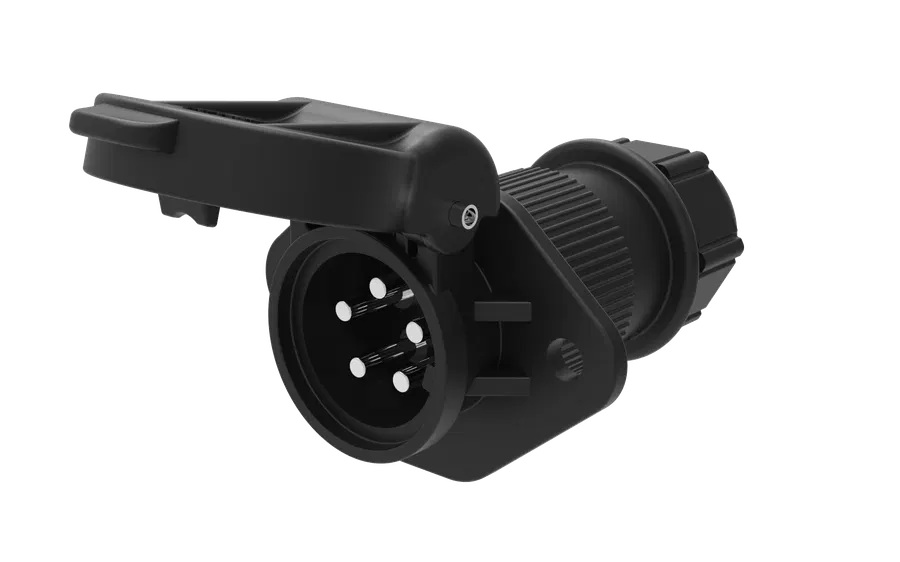

For a useful quote, include related system parts where possible: 151163 5P/6-24V Socket (without standard), 251281 1P/24V(300A) (red, power) Plug (without standard), 151291 1P/24V(300A) (red, power) Socket (without standard), 251282 1P/24V(300A) (black, ground) Plug (without standard), 151290 1P/24V(300A) (black, ground) Socket (without standard). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
611135
Product family
coil cable
Category
coil cable
Standard
without standard
Voltage
6-24V
Poles
5P
Industry
commercial vehicles, agriculture
Related product families
component
Working length [in m]
1.8
Wire cross-sectional area
5x 0.75mm²
Contact termination
crimp contact
No. of coils
30
Outer coil diameter [in mm]
30

611135

Questions about this reference

Can Erich Jaeger 611135 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Working length [in m]
1.8
Wire cross-sectional area
5x 0.75mm²
Contact termination
crimp contact
No. of coils
30
Outer coil diameter [in mm]
30
