Erich Jaeger alternative
151130
3P/6-24V(25A) Socket (DIN 9680)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-PS-000150
3-pole DIN/ISO 9680 socket
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
96803P
ConnectorRoute price
€0.90
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
Aspöck
13-3193-507
Claas
6005010046
Deutz
260390200
Europart
9501241286
Fricke
50751305135
Hella
8JB 001 933-011
Herth & Buss
51305135
Hofmei
2820004147
Iveco
5170243
Littelfuse
681700
OEM
51305135
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 151130 is 3P/6-24V(25A) Socket (DIN 9680). This socket is the fixed connection point for a 6-24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. DIN 9680 and 6-24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is DIN 9680, 6-24V, 3P and agriculture.
What does 151130 do?
This page treats 151130 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Contact termination: plug-in contact, Contact surface: nickel (Ni), Protection: IP 54, IP X4, Type of seal: grommet, Design/Version: with 2-bolt-flange, Housing material: reinforced composite and Housing color: black. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request

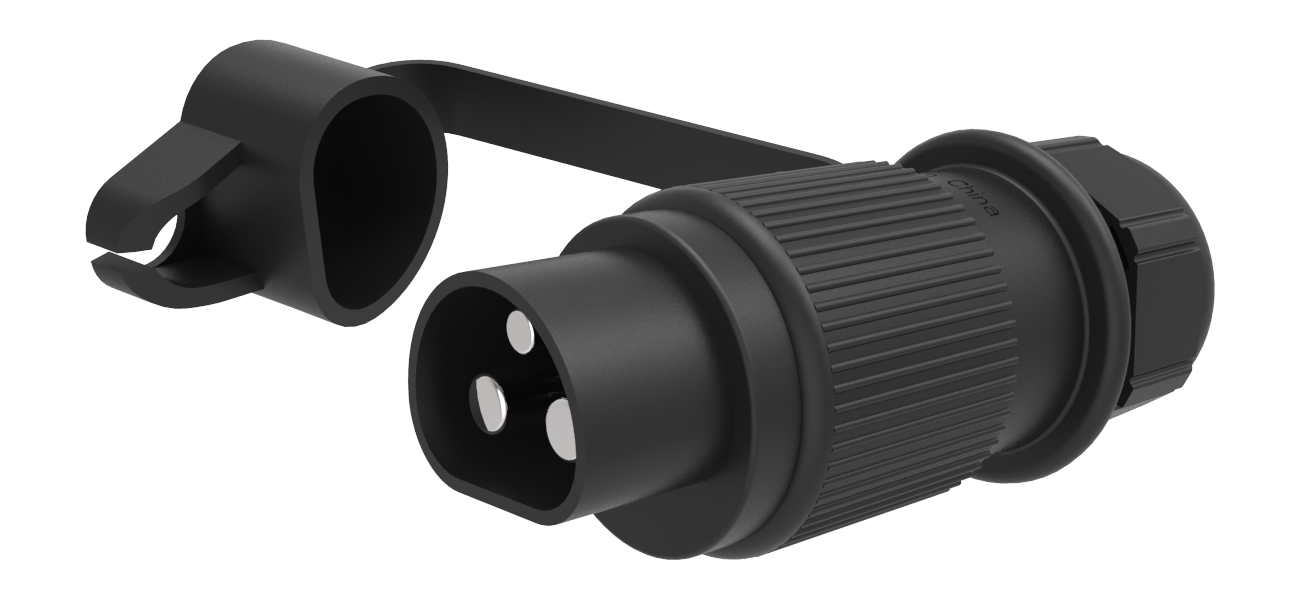

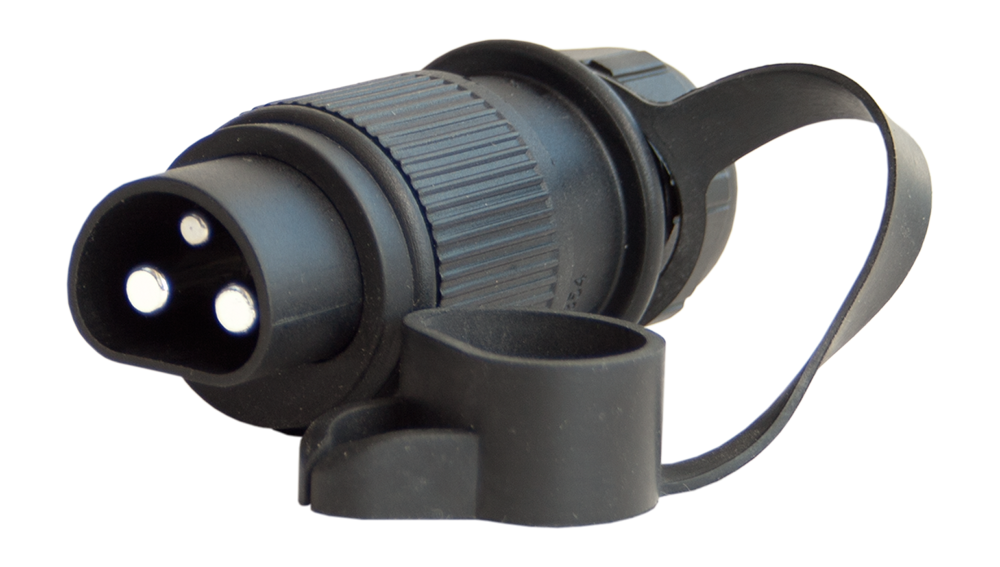

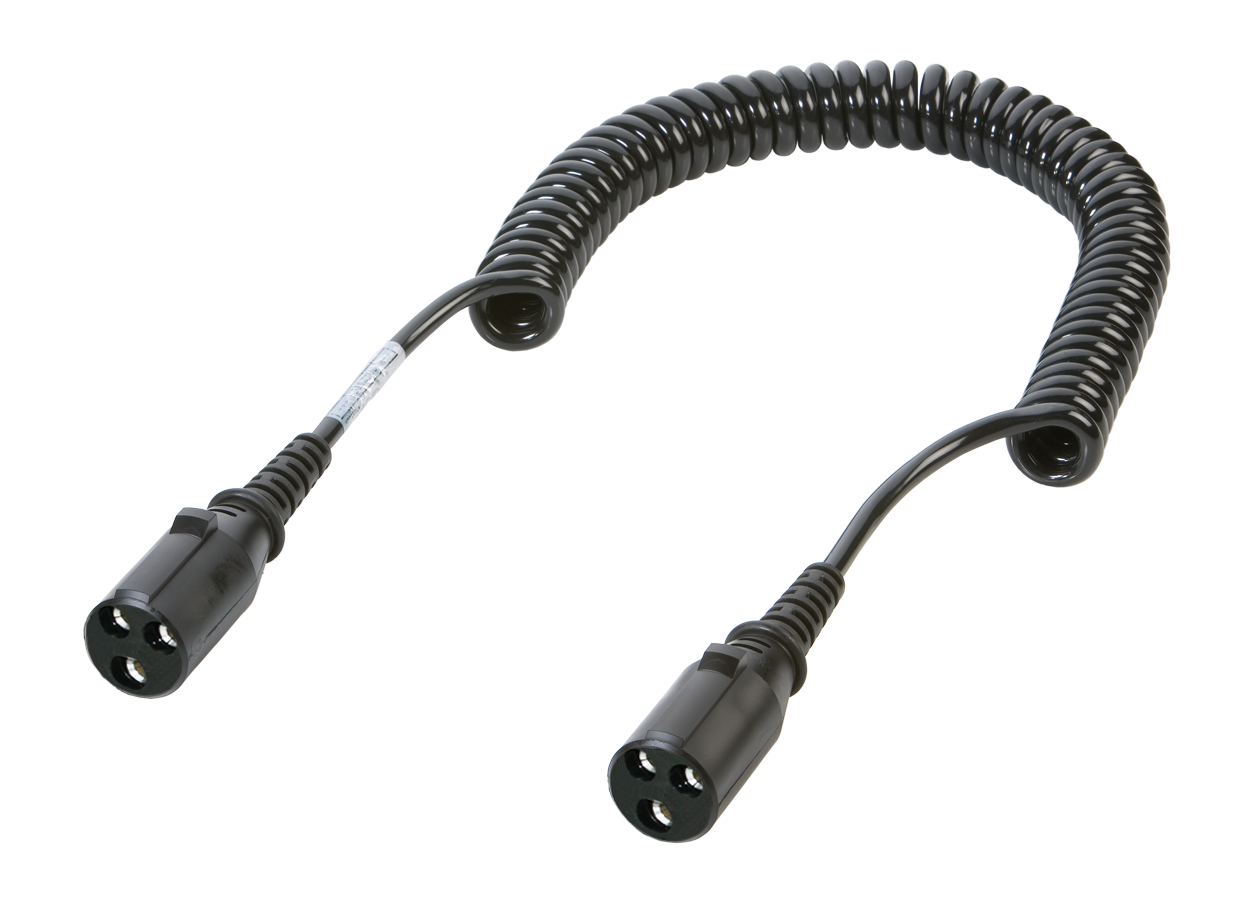

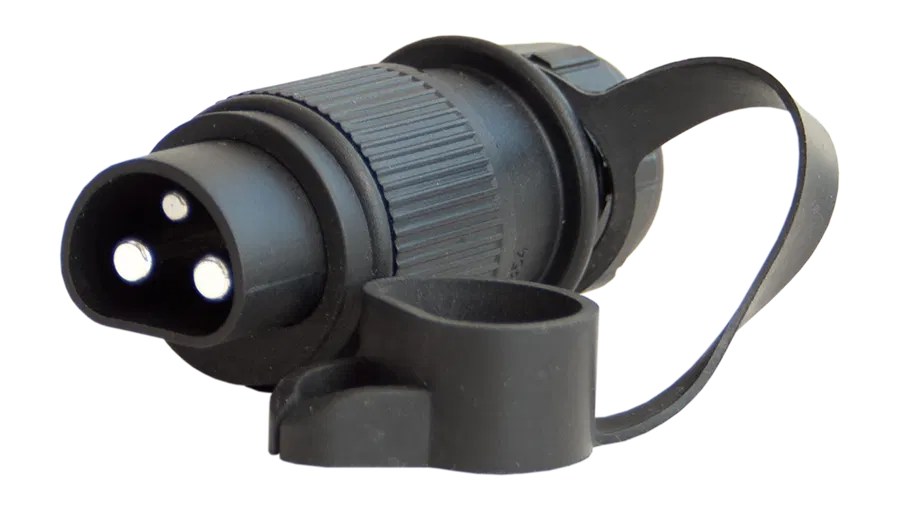

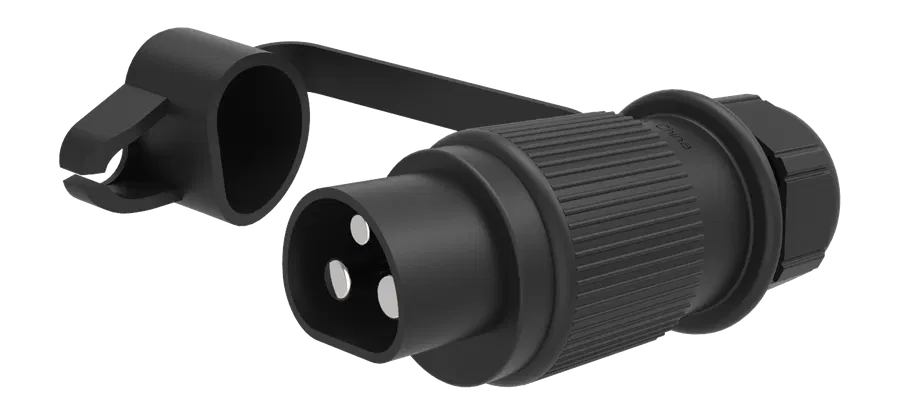

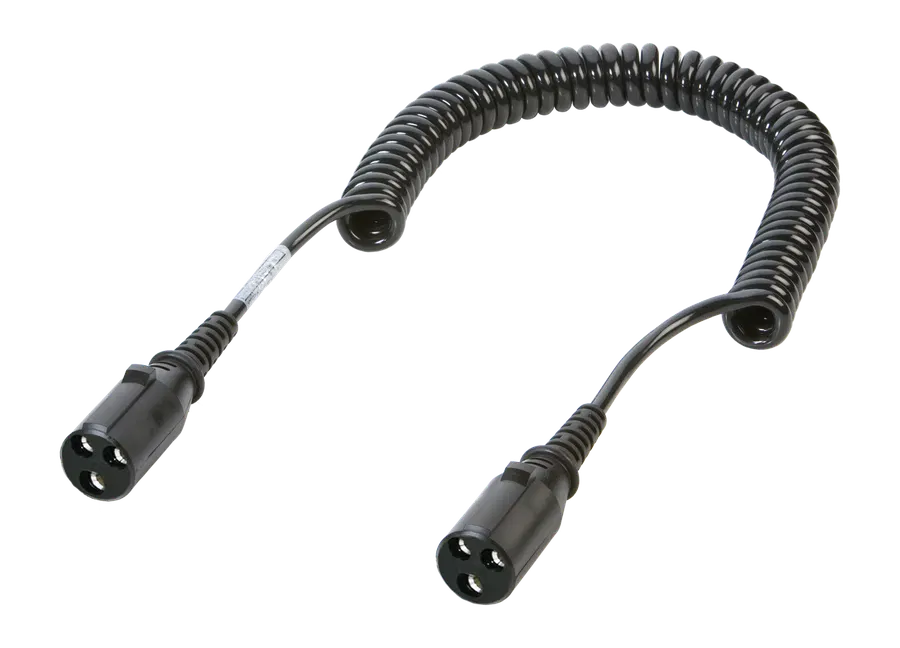

For a useful quote, include related system parts where possible: 251249 3P/6-24V(10A) Cable (DIN 9680), 251100 3P/6-24V(25A) Plug (DIN 9680), 651535 3P/24V(25A) Coil (without standard), 251267 3P/6-24V(32A) Plug (DIN 9680), 251247 3P/6-24V(25A) Plug (DIN 9680). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 151130
- Product family
- socket
- Category
- socket
- Standard
- DIN 9680
- Voltage
- 6-24V
- Poles
- 3P
- Industry
- agriculture
- Related product families
- component
- Contact termination
- plug-in contact
- Protection
- IP X4, IP 54
- Packaging
- without packaging
- Type of seal
- grommet
- Cover color
- black
Questions about this reference
Can Erich Jaeger 151130 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Contact termination
- plug-in contact
- Protection
- IP X4, IP 54
- Packaging
- without packaging
- Type of seal
- grommet
- Cover color
- black
- Product group
- socket
- Standard
- DIN 9680
- Industry
- agriculture
- Rated current / permanent load [in A]
- 25
- Voltage [in V]
- 6-24
- Included in delivery
- seal
- Design/Version
- with 2-bolt-flange
- Type of seal
- grommet
- Contact surface
- nickel (Ni)
- Cover material
- reinforced composite
- Housing color
- black
- Housing material
- reinforced composite
- Contact termination
- plug-in contact
- Contact version
- contact sleeve
- Features of plug-in contacts
- flat terminal
- No. of poles
- 03
- Protection
- IP 54, IP X4
