Erich Jaeger alternative

151296

3P/24V(25A) Socket (without standard)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Bosch F032182375ZDB
Europart 4830151296
Fricke 5070010072
Herth & Buss 51305193

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

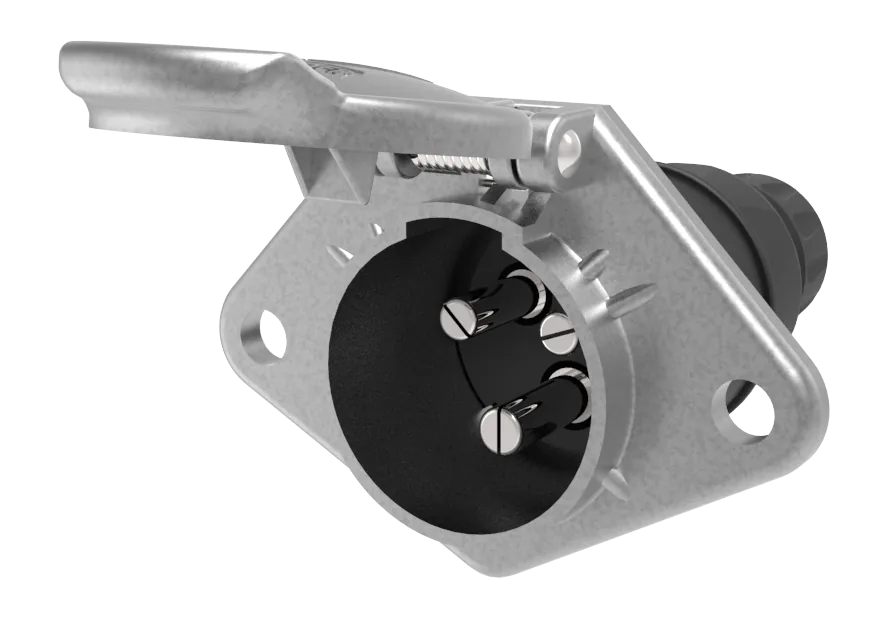

Erich Jaeger 151296 is 3P/24V(25A) Socket (without standard). This socket is the fixed connection point for a 24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. without standard and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is without standard, 24V, 3P and agriculture, commercial vehicles.

What does 151296 do?

This page treats 151296 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 251249 3P/6-24V(10A) Cable (DIN 9680), 251280 3P/24V(25A) Plug (without standard), 651535 3P/24V(25A) Coil (without standard), 251029 3P/6-24V(16A) Plug (without standard), 611135 5P/6-24V Coil (without standard). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
151296
Product family
socket
Category
socket
Standard
without standard
Voltage
24V
Poles
3P
Industry
agriculture, commercial vehicles
Related product families
component
External cross-references
Bosch: F032182375ZDB · Europart: 4830151296 · Fricke: 5070010072 · Herth & Buss: 51305193
For cable diameter
11,40mm - 14,00mm
Contact termination
screw contact
Type of seal
sealing plug
Contact insert color
black
Housing color
zilverkleurig

151296

Questions about this reference

Can Erich Jaeger 151296 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

For cable diameter
11,40mm - 14,00mm
Contact termination
screw contact
Type of seal
sealing plug
Contact insert color
black
Housing color
zilverkleurig
