C ConnectorRoute

Erich Jaeger alternative

341242

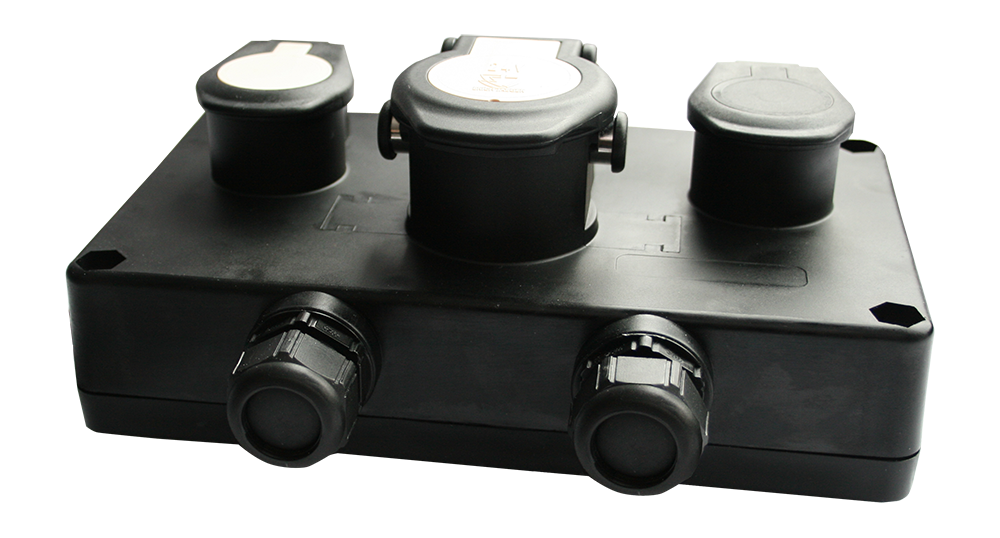

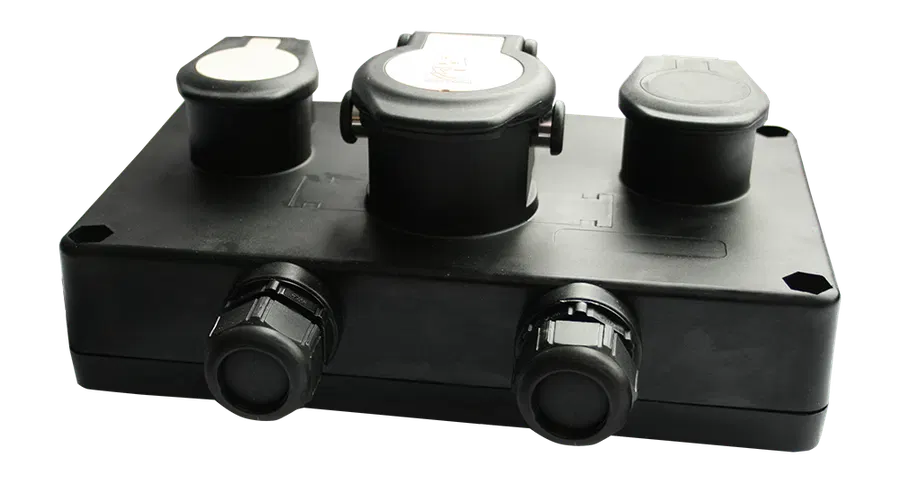

(front-) «ERICH JAEGER» Junction box

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
DAF 152 7353
Europart 4830341242
Hella 8JE 340 165-001
Scania 2 197 774
Schmitz Cargobull ELO0090038

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 341242 is (front-) «ERICH JAEGER» Junction box. This component belongs to a vehicle electrical system. The article number is only the starting point; the practical replacement depends on the connected system, mounting situation and electrical function. ISO 12098 points to the 15-pole 24V truck-trailer connection family; it is normally checked together with the matching 15-pole plug, socket or coil cable. The known selection frame is agriculture.

What does 341242 do?

This page treats 341242 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a lighting installation components, junction box, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 151165 3P/6-24V socket with pin contacts (DIN 9680 - similar) - with pin contacts instead of socket contacts, 151003 2P/6-42V(30A) Socket (DIN 14690), 251266 4P plug kit for ISOBUS socket (IBBC - ISO 11783-2) - Breakaway Connector, 251106 3P/6-24V plug with socket contacts (DIN 9680 - similar). - with socket contacts instead of pin contacts, 651022 4P/6-24V Coil (DIN 72575). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
341242
Product family
Lighting Installation Components, Junction Box
Category
Lighting Installation Components, Junction Box
Industry
agriculture
Related product families
component
External cross-references
DAF: 152 7353 · Europart: 4830341242 · Hella: 8JE 340 165-001 · Scania: 2 197 774 · Schmitz Cargobull: ELO0090038
Protection
IP 54
Branding
ERICH JAEGER
Product supplement
(front-)
Size, no., pole and standard of terminals
Input: socket 15-pin ISO 12098 socket 7-pin N ISO 1185 socket 7-pin S ISO 3731 Output: 2x grommet (closed)
Brand
ERICH JAEGER

341242

Questions about this reference

Can Erich Jaeger 341242 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Protection
IP 54
Branding
ERICH JAEGER
Product supplement
(front-)
Size, no., pole and standard of terminals
Input: socket 15-pin ISO 12098 socket 7-pin N ISO 1185 socket 7-pin S ISO 3731 Output: 2x grommet (closed)
Brand
ERICH JAEGER
