C ConnectorRoute

Erich Jaeger alternative

651022

4P/6-24V Coil (DIN 72575)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Hofmei 2046651022
MAN 81254116065

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 651022 is 4P/6-24V Coil (DIN 72575). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. DIN 72575 and 6-24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is DIN 72575, 6-24V, 4P and agriculture.

What does 651022 do?

This page treats 651022 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

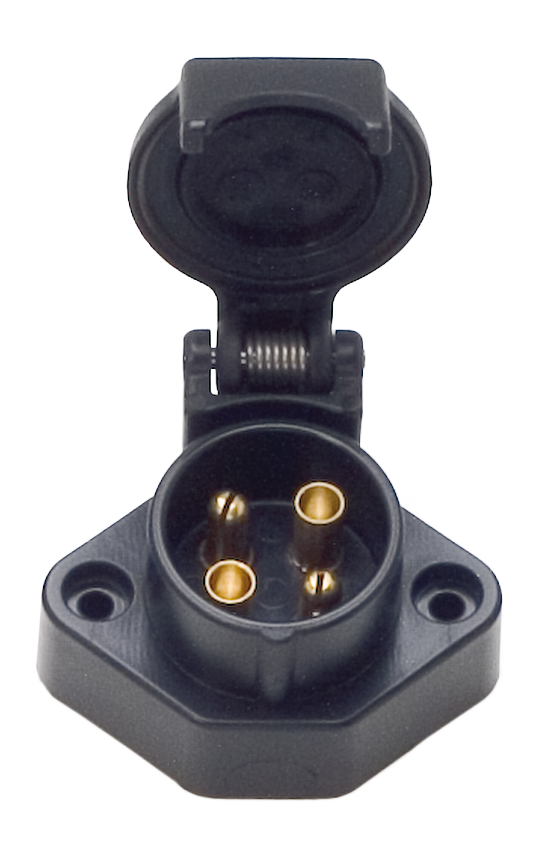

For a useful quote, include related system parts where possible: 151035 4P/6-24V Socket (DIN 72575), 251011 4P/6-24V Plug (DIN 72575), 151049 4P/6-24V Socket (DIN 72575), 251010 4P/6-24V Plug (DIN 72575), 151036 4P/6-24V Socket (DIN 72575). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
651022
Product family
coil cable
Category
coil cable
Standard
DIN 72575
Voltage
6-24V
Poles
4P
Industry
agriculture
Related product families
component
External cross-references
Hofmei: 2046651022 · MAN: 81254116065
Working length [in m]
3
Max. working length [in m]
4
Max. extension length [in m]
4.5
Wire cross-sectional area
3x 1.0mm² + 1x 1.5mm²
Protection
IP X4

651022

Questions about this reference

Can Erich Jaeger 651022 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Working length [in m]
3
Max. working length [in m]
4
Max. extension length [in m]
4.5
Wire cross-sectional area
3x 1.0mm² + 1x 1.5mm²
Protection
IP X4
