View product
Erich Jaeger alternative
151049
4P/6-24V Socket (DIN 72575)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-PS-000147
4-pole DIN/ISO 72575 socket
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
725754PIP 5K
ConnectorRoute price
on request
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
AGCO Fendt
1865200491
Bosch
0 352 040 002
DAF
642759
Daimler
A 002 545 17 26
Europart
4830151049
Hella
8JB 001 944-011
Herth & Buss
51305114
Hofmei
2046151049
Iveco
83982634
Kögl
90028207
Krone
500944118
MAN
81254320024
Reflexallen
6.00763.000
Scania
1 934 331
Volvo
20525149
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application

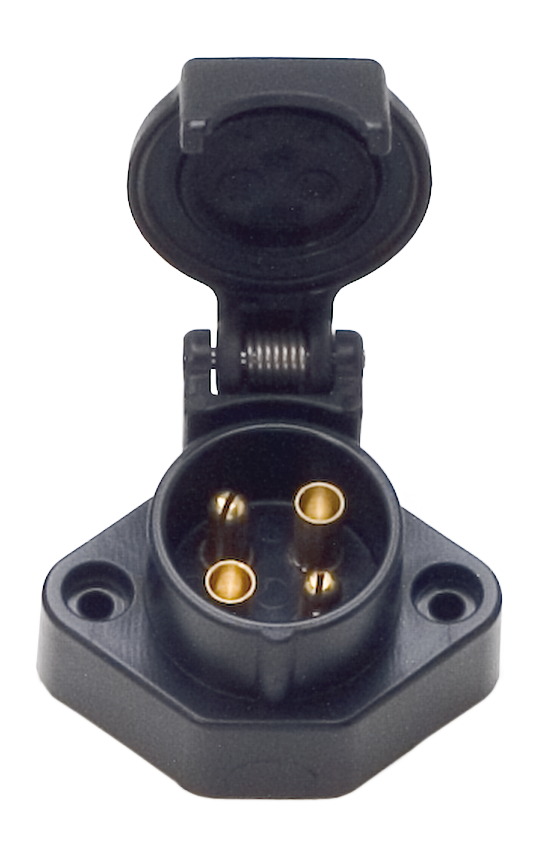

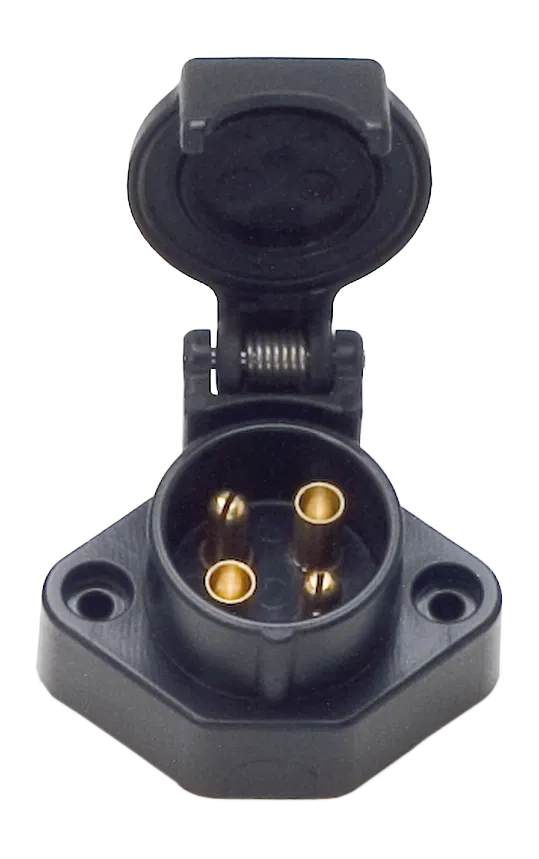

Erich Jaeger 151049 is 4P/6-24V Socket (DIN 72575). This socket is the fixed connection point for a 6-24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. DIN 72575 and 6-24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is DIN 72575, 6-24V, 4P and agriculture.
What does 151049 do?
This page treats 151049 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Contact termination: screw contact, Protection: IP X4, Cable outlet: cable outlet 90°, Type of seal: seal, Housing material: reinforced composite and Housing color: black. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 251011 4P/6-24V Plug (DIN 72575), 651022 4P/6-24V Coil (DIN 72575), 251010 4P/6-24V Plug (DIN 72575), 382167 4P Plug ECU/Pass-Through - for ISOBUS socket (IBBC - Breakaway Connector), on tractor side, 251266 4P plug kit for ISOBUS socket (IBBC - ISO 11783-2) - Breakaway Connector. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 151049
- Product family
- socket
- Category
- socket
- Standard
- DIN 72575
- Voltage
- 6-24V
- Poles
- 4P
- Industry
- agriculture
- Related product families
- component
- Contact termination
- screw contact
- Protection
- IP X4
- Type of seal
- seal
- Cover color
- black
- Cover material
- versterkt composiet
Questions about this reference
Can Erich Jaeger 151049 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Contact termination
- screw contact
- Protection
- IP X4
- Type of seal
- seal
- Cover color
- black
- Cover material
- versterkt composiet
- Product group
- socket
- Standard
- DIN 72575
- Industry
- agriculture
- Voltage [in V]
- 6-24
- Included in delivery
- seal
- Packaging
- without packaging
- Type of seal
- seal
- Cover material
- reinforced composite
- Housing color
- black
- Housing material
- reinforced composite
- Cable outlet
- cable outlet 90°
- Contact termination
- screw contact
- No. of poles
- 04
- Protection
- IP X4
