Erich Jaeger alternative

711185

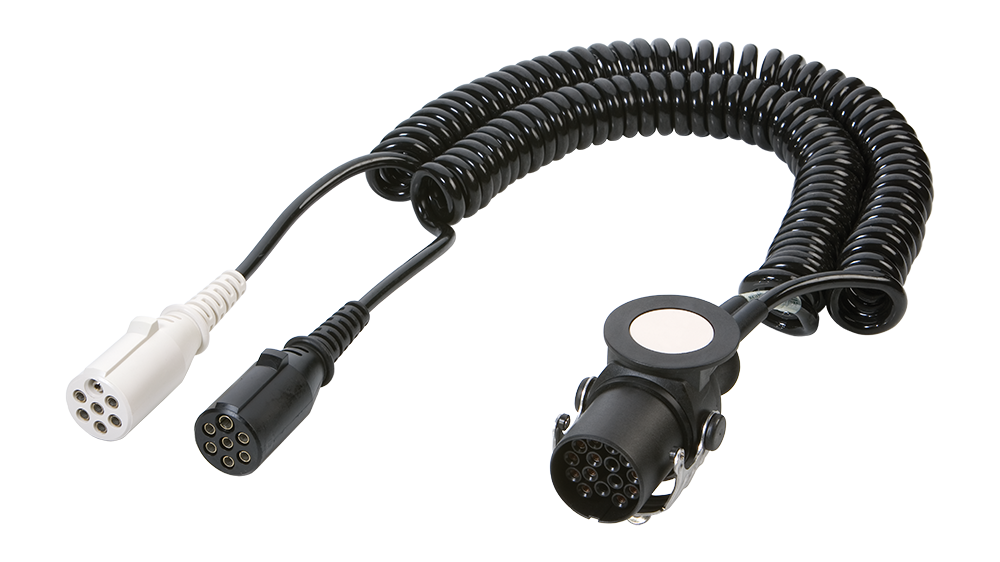

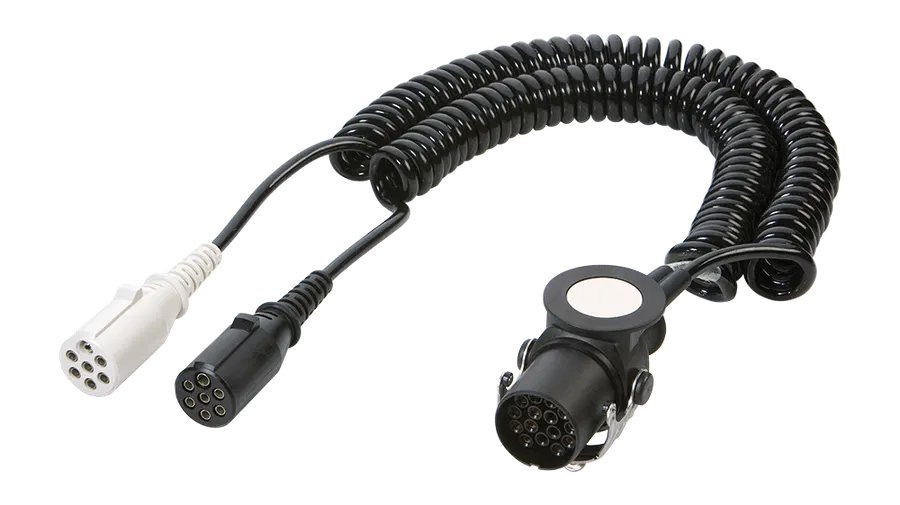

Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Europart 4830711185
Hofmei 74281448
OEM 21680290, 21680281, 2111147
Scania 2111147
Volvo 21680290
Würth 0510950280 061 1

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 711185 is Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V composite plugs (ISO 1185 + ISO 3731). This adapter connects two connector standards or layouts. It is especially important to verify the pin allocation, because the mechanical fit alone does not prove that every lighting and auxiliary function is routed correctly. ISO 12098 points to the 15-pole 24V truck-trailer connection family; it is normally checked together with the matching 15-pole plug, socket or coil cable. The known selection frame is ISO 12098, ISO 1185 - Type N, ISO 3731 - Type S, 24V, 7P and commercial vehicles.

What does 711185 do?

This page treats 711185 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a adapter, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 141053 15P/24V Socket (ISO 12098 ADR), 241010 15P/24V Plug (ISO 12098 ADR), 541128 15P/24V supply cable - with15P/24V supplementary socket (ISO 12098) and 2x 8P connector, 641167 15P/24V Coil (ISO 12098 ADR), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
711185
Product family
adapter
Category
adapter
Standard
ISO 12098, ISO 1185 - Type N, ISO 3731 - Type S
Voltage
24V
Poles
7P
Industry
commercial vehicles
Related product families
component
External cross-references
Europart: 4830711185 · Hofmei: 74281448 · OEM: 21680290, 21680281, 2111147 · Scania: 2111147 · Volvo: 21680290 · Würth: 0510950280 061 1
Contact allocation
diagram 1
Working length [in m]
3
Max. working length [in m]
4
Max. extension length [in m]
4.5
Packaging
without packaging

711185

Questions about this reference

Can Erich Jaeger 711185 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Contact allocation
diagram 1
Working length [in m]
3
Max. working length [in m]
4
Max. extension length [in m]
4.5
Packaging
without packaging
