Erich Jaeger alternative

241010

15P/24V Plug (ISO 12098 ADR)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

15-pole 24V DIN/ISO 12098 plug

Recommended ConnectorRoute route

15-pole 24V DIN/ISO 12098 plug

Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.

1209824V15PIP 69
ConnectorRoute price €8.80
Open ConnectorRoute product

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Berner 60158
DAF 1384312
Europart 4830241010
Febi 171819
Fricke 50751305242
Hella 8JA 007 241-021
Herth & Buss 51305269
Hofmei 685000003
Kögl 6611590
Littelfuse 594600
Phillips A011-3-2-01-1001
Reflexallen 13000.8901
Scania 1 934 319
Würth 0510950219061 1

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 241010 is 15P/24V Plug (ISO 12098 ADR). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 12098 points to the 15-pole 24V truck-trailer connection family; the ADR addition makes the sealing, routing and application check even more important. The known selection frame is ISO 12098, 24V, 15P and commercial vehicles.

What does 241010 do?

This page treats 241010 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.

Technical checks before replacing it

The public product data highlights: For cable diameter: 12,00mm - 18,00mm, Contact termination: screw contact, Protection: IP 54, Cable outlet: cap nut, Type of seal: end cap, Housing material: reinforced composite and Housing color: black. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

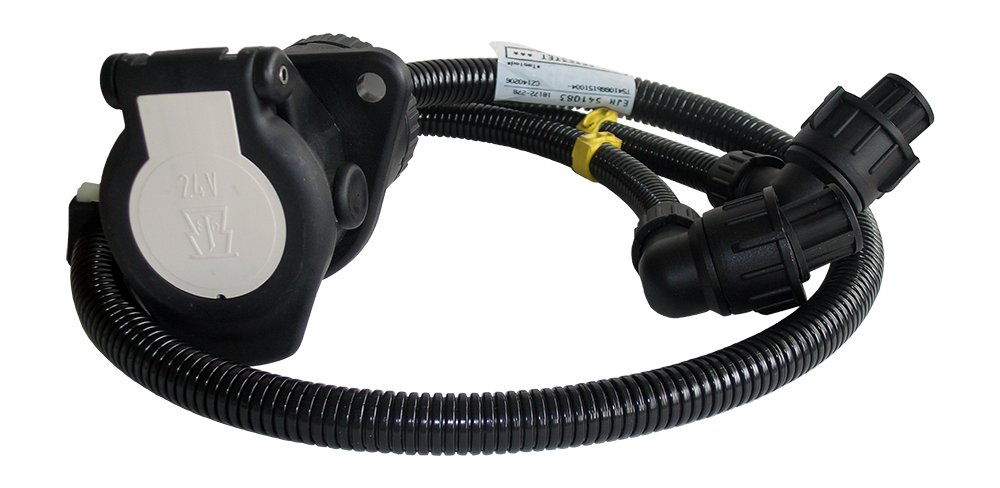

For a useful quote, include related system parts where possible: 141053 15P/24V Socket (ISO 12098 ADR), 541128 15P/24V supply cable - with15P/24V supplementary socket (ISO 12098) and 2x 8P connector, 641167 15P/24V Coil (ISO 12098 ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
241010
Product family
plug
Category
plug
Standard
ISO 12098
Voltage
24V
Poles
15P
Industry
commercial vehicles
Related product families
component
For cable diameter
12,00mm - 18,00mm
Contact termination
screw contact
Protection
IP 54
Packaging
PE bag
Type of seal
end cap

Questions about this reference

Can Erich Jaeger 241010 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

For cable diameter
12,00mm - 18,00mm
Contact termination
screw contact
Protection
IP 54
Packaging
PE bag
Type of seal
end cap
Product group
plug
Standard
ISO 12098
Industry
commercial vehicles
Voltage [in V]
24
Included in delivery
contacts
Special feature
color coding for easy installation
Type of seal
end cap
Contact insert color
black
Cover insert color
red
Housing color
black
Housing material
reinforced composite
Cable outlet
cap nut
Contact termination
screw contact
Contact version
contact sleeve
No. of poles
15
Addition to standard
ADR
Protection
IP 54
For cable diameter
12,00mm - 18,00mm
