Erich Jaeger alternative

382701

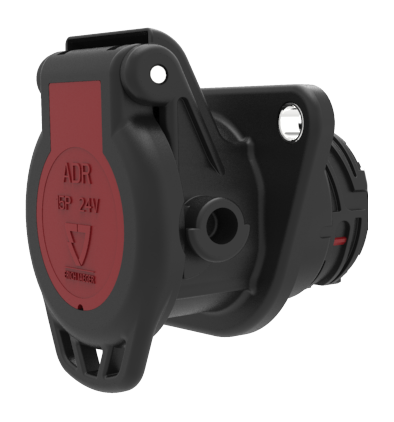

15P/24V 100% waterproof «JAEGER Expert» socket housing (ISO 12098 ADR)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 382701 is 15P/24V 100% waterproof «JAEGER Expert» socket housing (ISO 12098 ADR). This socket is the fixed connection point for a 24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. ISO 12098 points to the 15-pole 24V truck-trailer connection family; it is normally checked together with the matching 15-pole plug, socket or coil cable. The known selection frame is ISO 12098, 24V, 15P and commercial vehicles.

What does 382701 do?

This page treats 382701 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 541128 15P/24V supply cable - with15P/24V supplementary socket (ISO 12098) and 2x 8P connector, 241010 15P/24V Plug (ISO 12098 ADR), 641167 15P/24V Coil (ISO 12098 ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 541083 15P/24V supply cable - with15P/24V supplementary socket (ISO 12098) and 2x 8P angular connector (DIN 72580). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
382701
Product family
socket
Category
socket
Standard
ISO 12098
Voltage
24V
Poles
15P
Industry
commercial vehicles
Related product families
component
Protection
IP X9K, IP 54
Branding
ERICH JAEGER
Area of application
trekkend voertuig
Cover version
with seal
Cover insert color
red

382701

Questions about this reference

Can Erich Jaeger 382701 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Protection
IP X9K, IP 54
Branding
ERICH JAEGER
Area of application
trekkend voertuig
Cover version
with seal
Cover insert color
red
