Erich Jaeger alternative

341109

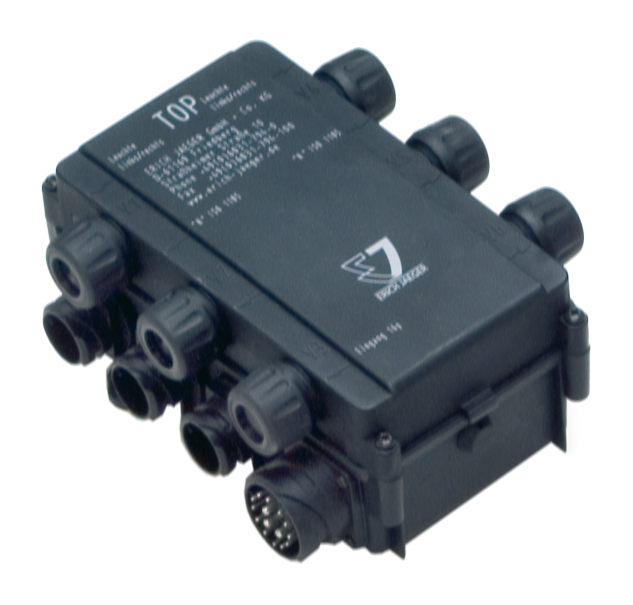

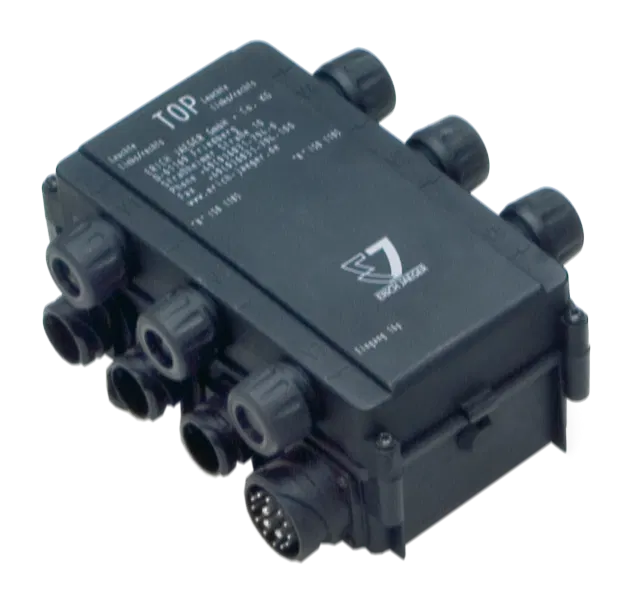

«ERICH JAEGER» Junction box

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 341109 is «ERICH JAEGER» Junction box. This component belongs to a vehicle electrical system. The article number is only the starting point; the practical replacement depends on the connected system, mounting situation and electrical function. The applicable standard and the voltage should be verified against the vehicle or trailer wiring diagram. The known selection frame is agriculture.

What does 341109 do?

This page treats 341109 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a lighting installation components, junction box, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

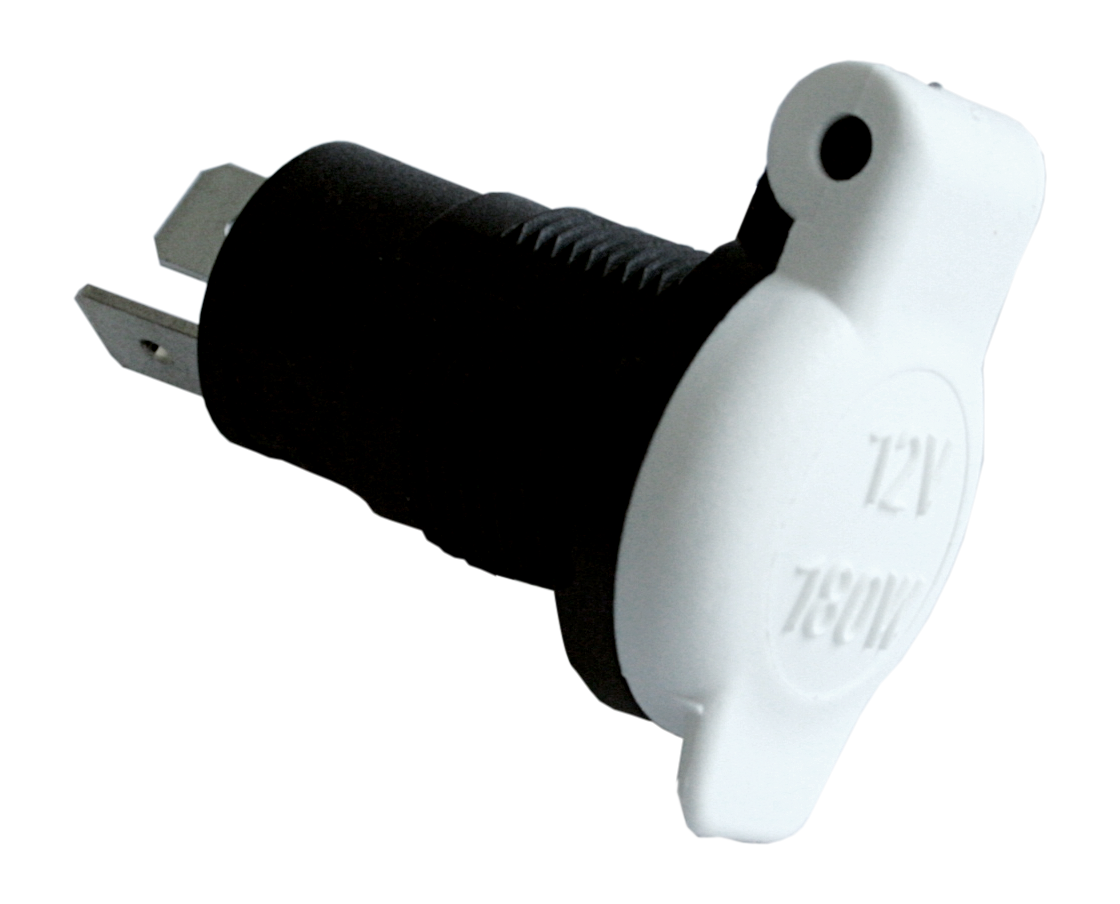

For a useful quote, include related system parts where possible: 151209 2P/6-24V(16A) (hand lamp-) Socket (ISO 4165), 151001 2P/6-42V(30A) Socket (DIN 14690), 251279 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector, 381408 3P/6-24V plug housing (DIN 9680), 652803 2P/6-24V Coil (ISO 4165 - ADR) for the connection of power supply. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
341109
Product family
Lighting Installation Components, Junction Box
Category
Lighting Installation Components, Junction Box
Industry
agriculture
Related product families
component
Branding
ERICH JAEGER
Size, no., pole and standard of terminals
Input: 16-pin Output: lamp left/right (2x) 58R/58L/31 (2x) Additional in- and outputs in the cover with cap nuts: V1, V2: double for cable diameter 2x D 5.6 - 6.5mm V3 - V6: single for cable diameter D 5.5 - 16.0mm
Brand
ERICH JAEGER

341109

Questions about this reference

Can Erich Jaeger 341109 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Branding
ERICH JAEGER
Size, no., pole and standard of terminals
Input: 16-pin Output: lamp left/right (2x) 58R/58L/31 (2x) Additional in- and outputs in the cover with cap nuts: V1, V2: double for cable diameter 2x D 5.6 - 6.5mm V3 - V6: single for cable diameter D 5.5 - 16.0mm
Brand
ERICH JAEGER
