Erich Jaeger alternative
251315

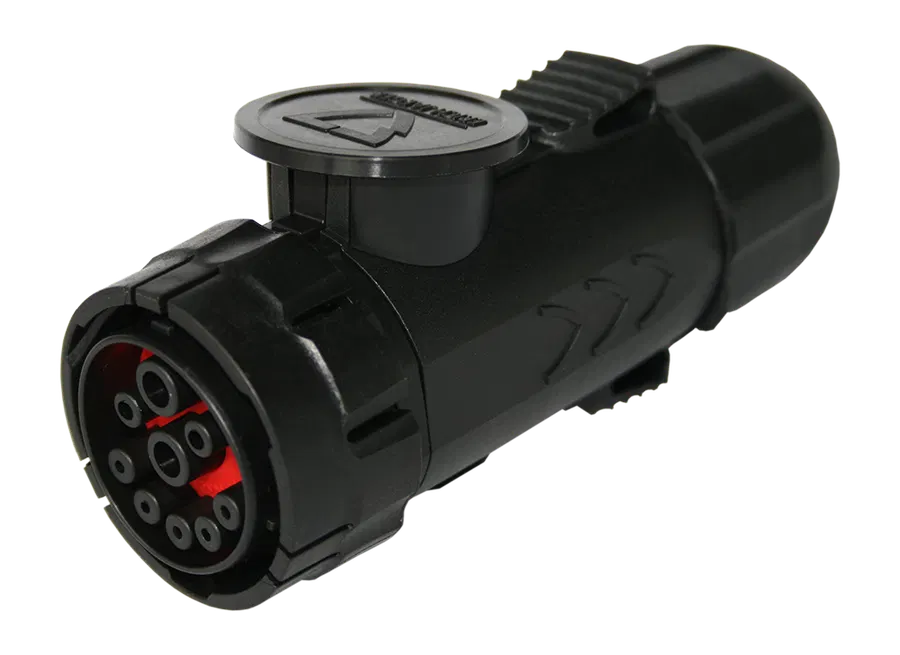

9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 251315 is 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector. This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 11783-2 and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 11783-2, 12V, 9P and agriculture.
What does 251315 do?
This page treats 251315 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: For cable diameter: 15,00mm - 18,00mm, Contact surface: nickel (Ni), Protection: IP 54, IP 6X, IP X4K, IP X9K, Design/Version: Active (Master), Housing material: reinforced composite and Housing color: black. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 151234 9P/12V «ISOBUS (IBBC) 150 Active» Socket (ISO 11783-2) - Breakaway Connector - Active, 652220 9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector, 151236 9P/12V «ISOBUS (IBBC) 150 Passive» Socket (ISO 11783-2) - Breakaway Connector - Passive, 652224 9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector, 151232 9P/12V «ISOBUS (IBBC) 150 Passive CM» Socket (ISO 11783-2) - Breakaway Connector - Passive. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 251315
- Product family
- plug
- Category
- plug
- Standard
- ISO 11783-2
- Voltage
- 12V
- Poles
- 9P
- Industry
- agriculture
- Related product families
- component
- For cable diameter
- 15,00mm - 18,00mm
- Protection
- IP X9K, IP X4K, IP 6X, IP 54
- Packaging
- PE bag
- Branding
- ERICH JAEGER
- Design/Version
- Active (Master)
Questions about this reference
Can Erich Jaeger 251315 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- For cable diameter
- 15,00mm - 18,00mm
- Protection
- IP X9K, IP X4K, IP 6X, IP 54
- Packaging
- PE bag
- Branding
- ERICH JAEGER
- Design/Version
- Active (Master)
- Description
- Implement Connector - Plug-in compatible with ISO 11783-2
- Product group
- plug
- Standard
- ISO 11783-2
- Industry
- agriculture
- Brand
- ISOBUS (IBBP)
- Voltage [in V]
- 12
- Included in delivery
- contacts, seal
- Suitable for
- sealing cap (part no. 037447)
- Contact insert color
- black
- Contact surface
- nickel (Ni)
- Housing color
- black
- Housing material
- reinforced composite
- Contact version
- contact pin
- No. of poles
- 09
- Protection
- IP 54, IP 6X, IP X4K, IP X9K
- For cable diameter
- 15,00mm - 18,00mm
- Size of plug-in contacts
- 4x 0,5mm² + 2x 2,5mm² + 2x PWR (2x 6mm² / 2x 10mm²)
