Erich Jaeger alternative

151236

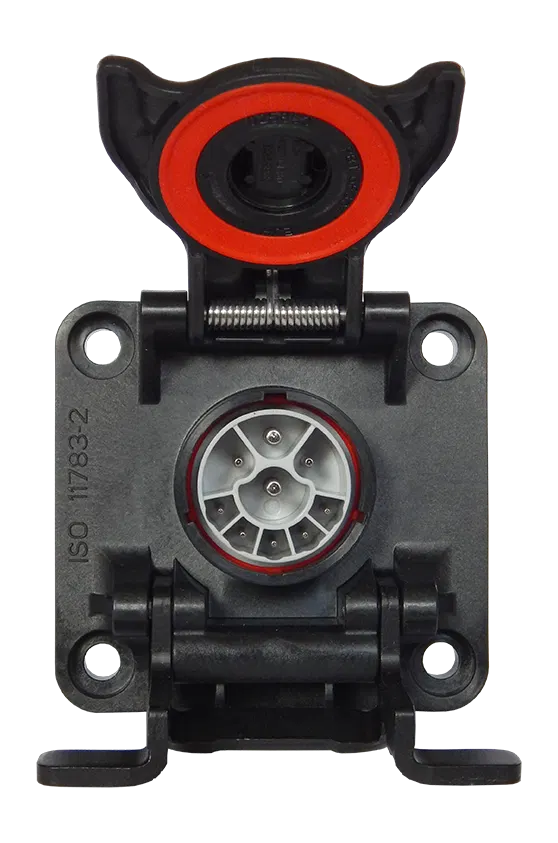

9P/12V «ISOBUS (IBBC) 150 Passive» Socket (ISO 11783-2) - Breakaway Connector - Passive

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
AGCO Fendt H 218 PB4 115 010
Bosch F032181689ZN4
Claas 125220
Europart 4830151236
Febi 186573
Fricke 5060010029
Herth & Buss 51305436
Hofmei 2046151236

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 151236 is 9P/12V «ISOBUS (IBBC) 150 Passive» Socket (ISO 11783-2) - Breakaway Connector - Passive. This socket is the fixed connection point for a 12V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. ISO 11783-2 and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 11783-2, 12V, 9P and agriculture.

What does 151236 do?

This page treats 151236 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 652220 9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector, 251271 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector, 652224 9P/12V «ISOBUS (IBIC)» Cable (ISO 11783-2) - Implement Connector, 251284 9P/12V «ISOBUS (IBIC)» Plug (ISO 11783-2) - Implement Connector, 382167 4P Plug ECU/Pass-Through - for ISOBUS socket (IBBC - Breakaway Connector), on tractor side. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
151236
Product family
socket
Category
socket
Standard
ISO 11783-2
Voltage
12V
Poles
9P
Industry
agriculture
Related product families
component
External cross-references
AGCO Fendt: H 218 PB4 115 010 · Bosch: F032181689ZN4 · Claas: 125220 · Europart: 4830151236 · Febi: 186573 · Fricke: 5060010029
Protection
IP X9K, IP X4K, IP 6X, IP 54
Branding
ERICH JAEGER
Cover color
black
Cover material
versterkt composiet
Design/Version
Passive (Slave)

151236

Questions about this reference

Can Erich Jaeger 151236 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Protection
IP X9K, IP X4K, IP 6X, IP 54
Branding
ERICH JAEGER
Cover color
black
Cover material
versterkt composiet
Design/Version
Passive (Slave)
