Erich Jaeger alternative

651597

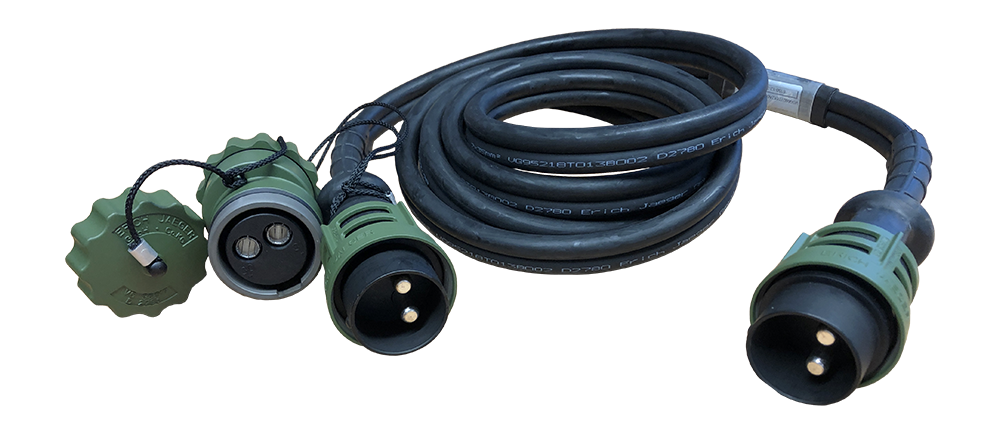

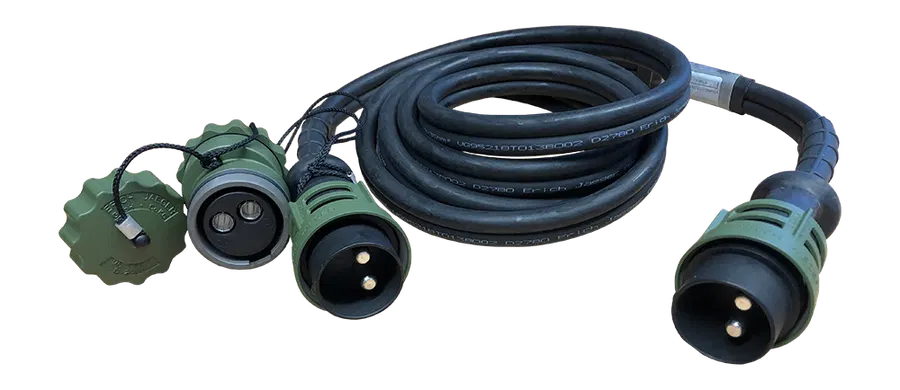

2P/24V(135A) Cable (VG 96927-12 A) - - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 651597 is 2P/24V(135A) Cable (VG 96927-12 A) - - 35mm² twin cable with 2x 2P/24V plugs with screw ring (according to VG 96917) and 1x 2P/24V coupler witg screw cap (according to VG 96917 D001). This cable is a pre-assembled connection route rather than a loose wire. Connector ends, cable length, conductor cross-section and system standard all need to be checked before replacing it. VG 96927-12 and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is VG 96927-12, 24V, 2P and defensievoertuigen.

What does 651597 do?

This page treats 651597 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a cable, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 151211 2P/24V(168A) Socket (VG 96917 A002), 251097 2P/24V(135A) Plug (VG 96917 E001A), 311181 2P/24V(300A) Adapter (STANAG 4074 / MIL-PRF-62122, VG 96917), 151212 2P/24V Socket (VG 96917 A001), 251098 2P/24V(168A) Plug (VG 96917). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
651597
Product family
cable
Category
cable
Standard
VG 96927-12
Voltage
24V
Poles
2P
Industry
defensievoertuigen
Related product families
component
Cable length [in m]
15
Wire cross-sectional area
2x 35mm²
Protection
IP X4, IP X7, IP 54
Housing color
bronsgroen (RAL 6031-F9)
Housing material
breukvast metaal

651597

Questions about this reference

Can Erich Jaeger 651597 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Cable length [in m]
15
Wire cross-sectional area
2x 35mm²
Protection
IP X4, IP X7, IP 54
Housing color
bronsgroen (RAL 6031-F9)
Housing material
breukvast metaal
