View product
Erich Jaeger alternative
641325
5P/24V «JAEGER Basic» Coil (ISO 7638-1 ABS, ADR)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-CO-000021
5-pole 24V coil cable ADR (7638-1) · 4 m
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
7638-124V5P
ConnectorRoute price
on request
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
DAF
1286274
Fricke
50751276635
Hella
8KA 007 648-071
Herth & Buss
51276635
Hofmei
683301240
Littelfuse
556770
Scania
1383749
Würth
051095051 061 1
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application

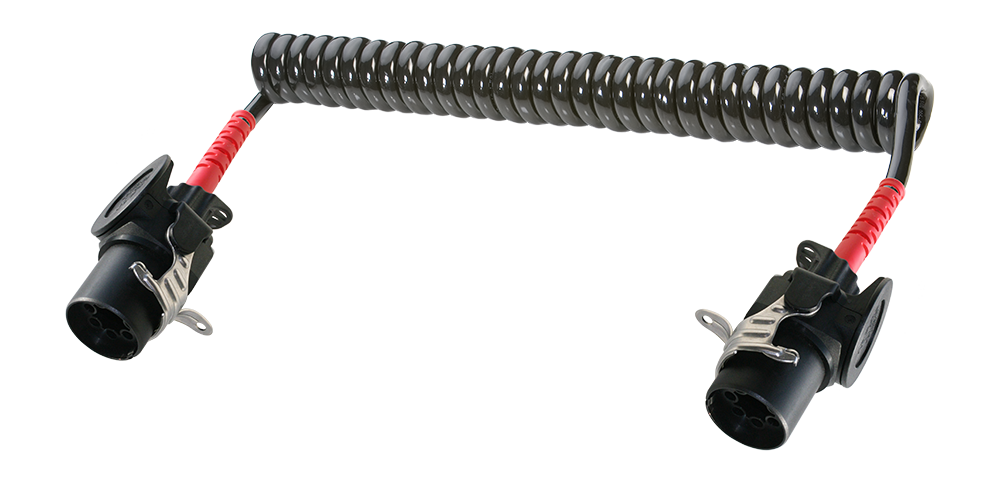

Erich Jaeger 641325 is 5P/24V «JAEGER Basic» Coil (ISO 7638-1 ABS, ADR). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. ISO 7638-1 and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 7638-1, 24V, 5P and commercial vehicles.
What does 641325 do?
This page treats 641325 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Protection: IP 54, Cable outlet: bending protection grommet, Max. extension length [in m]: 3,50, Wire cross-sectional area: 3x 1.5mm² + 2x 4.0mm², Material of cable: PUR, Outer coil diameter [in mm]: 50,00 and No. of connected sockets: 0. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 141170 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 241070 7P/24V Plug (ISO 7638-1 ABS, EBS, ADR), 141142 5P/24V «JAEGER Basic» Socket (ISO 7638-1 ABS, ADR), 381303 7P/24V plug housing (ISO 7638-1 ABS, EBS, ADR), 141070 7P/24V Socket (ISO 7638-1 ABS, EBS, ADR). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 641325
- Product family
- coil cable
- Category
- coil cable
- Standard
- ISO 7638-1
- Voltage
- 24V
- Poles
- 5P
- Industry
- commercial vehicles
- Related product families
- component
- Max. working length [in m]
- 3.5
- Wire cross-sectional area
- 3x 1.5mm² + 2x 4.0mm²
- Protection
- IP 54
- Packaging
- without packaging
- Outer coil diameter [in mm]
- 50
Questions about this reference
Can Erich Jaeger 641325 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Max. working length [in m]
- 3.5
- Wire cross-sectional area
- 3x 1.5mm² + 2x 4.0mm²
- Protection
- IP 54
- Packaging
- without packaging
- Outer coil diameter [in mm]
- 50
- Product group
- coil cable
- Standard
- ISO 7638-1
- Industry
- commercial vehicles
- Brand
- JAEGER Basic
- Temperature resistance [in °C]
- -40.0 - 100.0
- Voltage [in V]
- 24
- Special feature
- red bending protection, requirements similar to ISO 4141-4
- Cable color
- black
- Contact insert color
- black
- Housing color
- black
- Housing material
- reinforced composite
- Material of cable
- PUR
- Cable outlet
- bending protection grommet
- No. of connected plugs
- 2
- No. of connected sockets
- 0
- No. of poles
- 05
- Addition to standard
- ABS, ADR
- Protection
- IP 54
- Max. extension length [in m]
- 3,50
- Outer coil diameter [in mm]
- 50,00
- Wire cross-sectional area
- 3x 1.5mm² + 2x 4.0mm²
