C ConnectorRoute

Erich Jaeger alternative

611246

7P/24V Economy Coil (ISO 1185 - Type N)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
DAF 1485535
Daimler A 387 540 0239
Europart 4830611246
Febi 40101
Hella 8KA 004 797-141
Herth & Buss 51276670
Iveco 5 0003 7411
Kögl 6611578
Littelfuse 550890
MAN 81.25411.6038
Phillips D212-01-035-1001
Reflexallen 42056.1444
Renault 77 01 363 351
Scania 1357170
Volvo 11 305 874
Würth 051095605 061 1

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

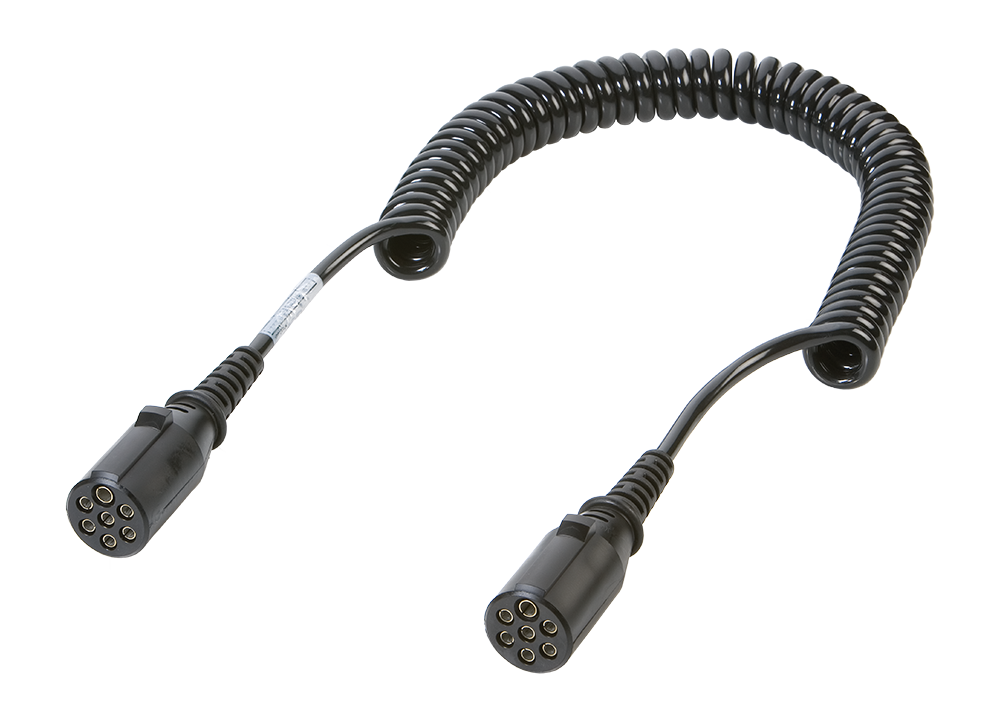

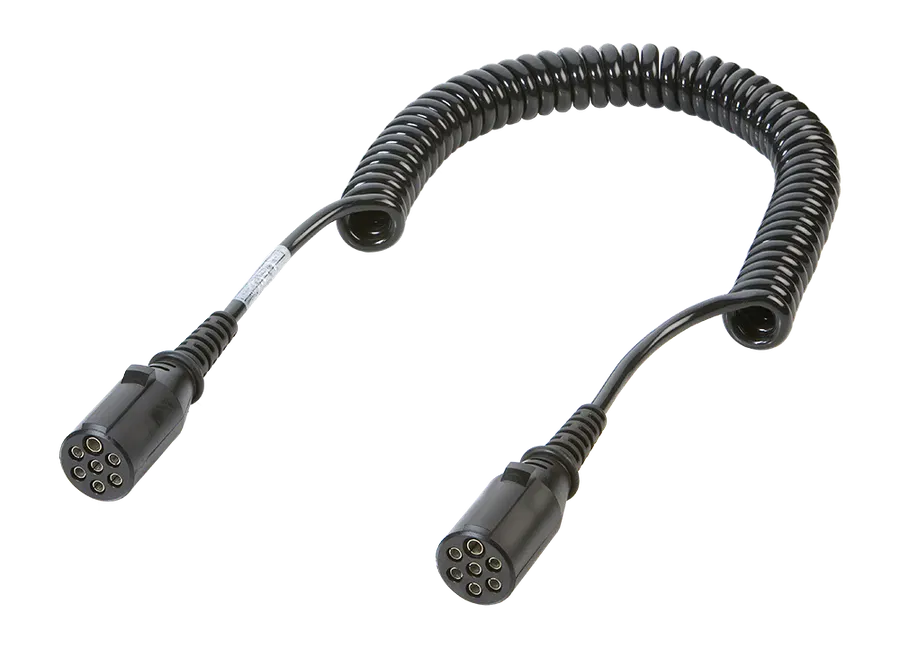

Erich Jaeger 611246 is 7P/24V Economy Coil (ISO 1185 - Type N). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1185 - Type N, 24V, 7P and commercial vehicles.

What does 611246 do?

This page treats 611246 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 111081 7P/24V Socket (ISO 1185 - Type N), 211009 7P/24V Plug (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111128 7P/24V Socket (ISO 1185 - Type N), 211035 7P/24V Plug (ISO 1185 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
611246
Product family
coil cable
Category
coil cable
Standard
ISO 1185 - Type N
Voltage
24V
Poles
7P
Industry
commercial vehicles
Related product families
component
External cross-references
DAF: 1485535 · Daimler: A 387 540 0239 · Europart: 4830611246 · Febi: 40101 · Hella: 8KA 004 797-141 · Herth & Buss: 51276670
Max. working length [in m]
3.5
Wire cross-sectional area
6x 1.0mm² + 1x 1.5mm²
Protection
IP 44
Packaging
without packaging
Outer coil diameter [in mm]
35

611246

Questions about this reference

Can Erich Jaeger 611246 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Max. working length [in m]
3.5
Wire cross-sectional area
6x 1.0mm² + 1x 1.5mm²
Protection
IP 44
Packaging
without packaging
Outer coil diameter [in mm]
35
