View product
Erich Jaeger alternative
601032
7P/12V Coil (ISO 1724 - Type N)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-CO-000013
7-pole 12V coil cable (1724 N-type) · 4 m
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
1724 N-type12V7P
ConnectorRoute price
on request
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
DAF
1343814
Daimler
A 387 540 00 39
Hella
8KA 004 797-021
Herth & Buss
51276522
Littelfuse
551300
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application

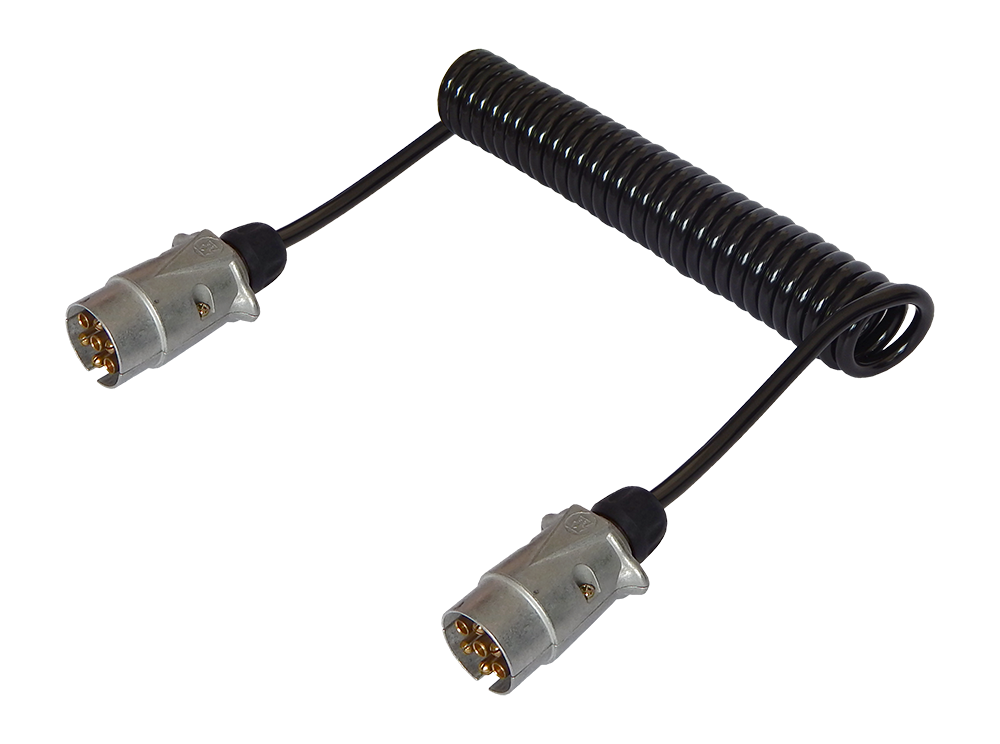

Erich Jaeger 601032 is 7P/12V Coil (ISO 1724 - Type N). This coil cable forms the flexible link between towing vehicle and trailer. Working length, maximum extension length, cable material and conductor cross-section matter just as much as the connector standard. ISO 1724 - Type N and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1724 - Type N, 12V, 7P and agriculture, cars.
What does 601032 do?
This page treats 601032 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a coil cable, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Protection: IP 44, Cable outlet: PG gland, Type of seal: grommet, Max. working length [in m]: 3,00, Max. extension length [in m]: 4,50, Wire cross-sectional area: 6x 1.0mm² + 1x 1.5mm² and Material of cable: TPE. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 101100 7P/12V Socket (ISO 1724 - Type N), 201212 7P/12V Plug (ISO 1724 - Type N), 311164 Economy "Shorty" mini short adapter - from vehicle (13P/12V) to trailer (7P/12V), 101285 7P/12V Socket (ISO 1724 - Type N), 201005 7P/12V Plug (ISO 1724 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 601032
- Product family
- coil cable
- Category
- coil cable
- Standard
- ISO 1724 - Type N
- Voltage
- 12V
- Poles
- 7P
- Industry
- agriculture, cars
- Related product families
- component
- Working length [in m]
- 3
- Max. working length [in m]
- 4
- Max. extension length [in m]
- 4.5
- Wire cross-sectional area
- 6x 1.0mm² + 1x 1.5mm²
- Protection
- IP 44
Questions about this reference
Can Erich Jaeger 601032 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Working length [in m]
- 3
- Max. working length [in m]
- 4
- Max. extension length [in m]
- 4.5
- Wire cross-sectional area
- 6x 1.0mm² + 1x 1.5mm²
- Protection
- IP 44
- Product group
- coil cable
- Standard
- ISO 1724 - Type N
- Industry
- agriculture, cars
- Voltage [in V]
- 12
- Packaging
- without packaging
- Strain relief
- with primary strain relief
- Type of seal
- grommet
- Cable color
- black
- Housing color
- silver-colored
- Housing material
- break-proof metal
- Material of cable
- TPE
- Cable outlet
- PG gland
- No. of connected plugs
- 2
- No. of connected sockets
- 0
- No. of poles
- 07
- Protection
- IP 44
- Max. extension length [in m]
- 4,50
- Max. working length [in m]
- 3,00
- Outer coil diameter [in mm]
- 50,00
- Wire cross-sectional area
- 6x 1.0mm² + 1x 1.5mm²
