Erich Jaeger alternative

36243

7P/24V Seal (ISO 1185 - Type N, ISO 3731 - Type S)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Aspöck 15-5020-007
Europart 310000000

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 36243 is 7P/24V Seal (ISO 1185 - Type N, ISO 3731 - Type S). This component belongs to a vehicle electrical system. The article number is only the starting point; the practical replacement depends on the connected system, mounting situation and electrical function. ISO 1185 - Type N, ISO 3731 - Type S and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1185 - Type N, ISO 3731 - Type S, 24V, 7P and commercial vehicles.

What does 36243 do?

This page treats 36243 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, accessories, seal, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

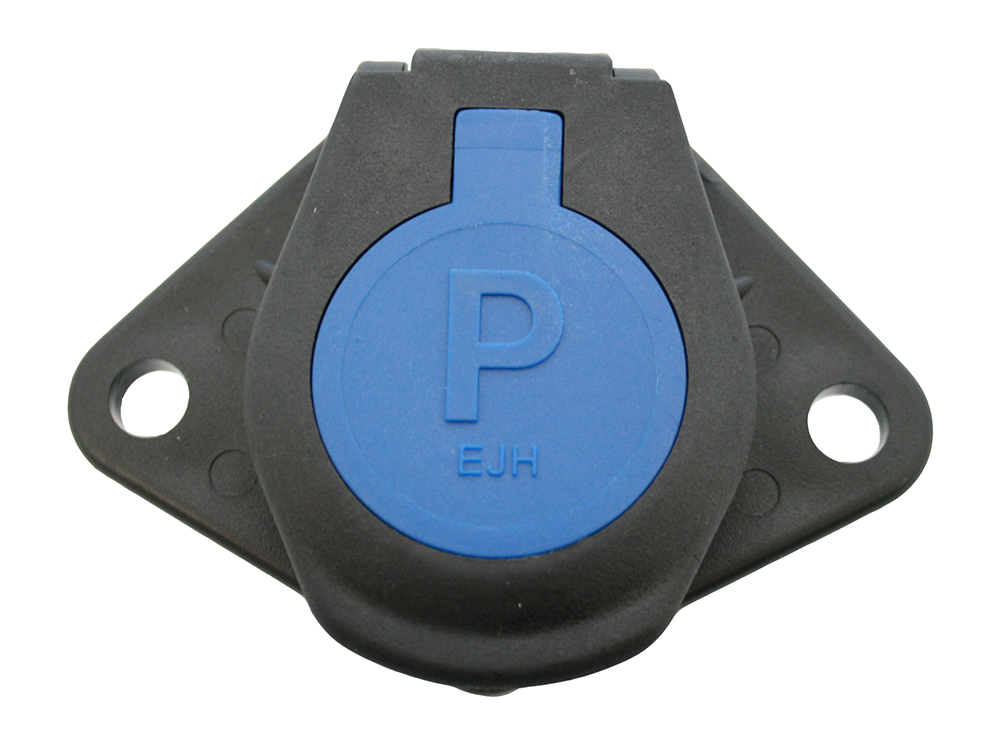

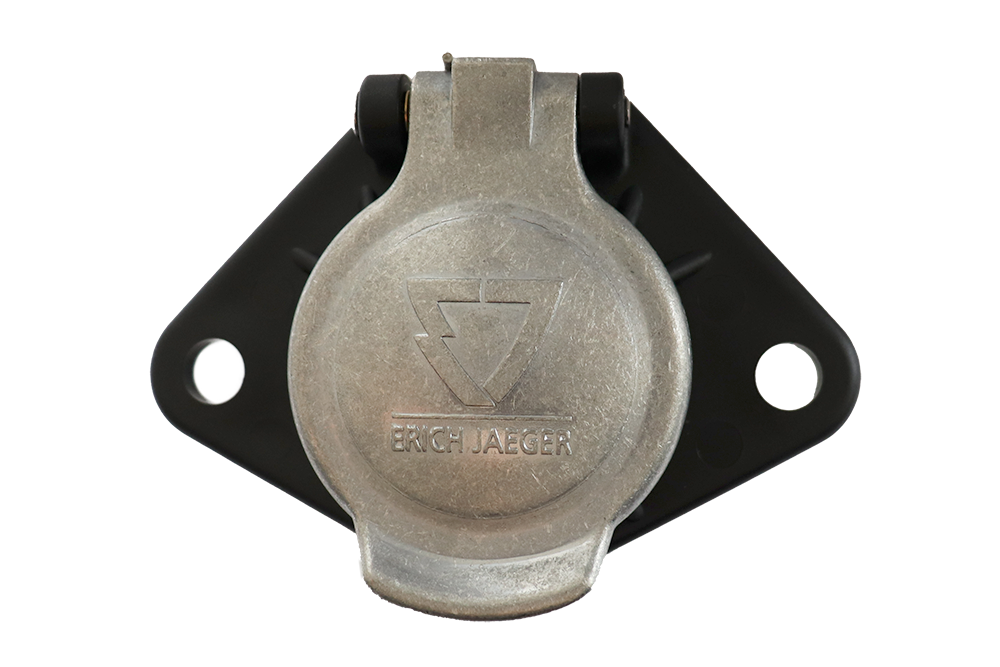

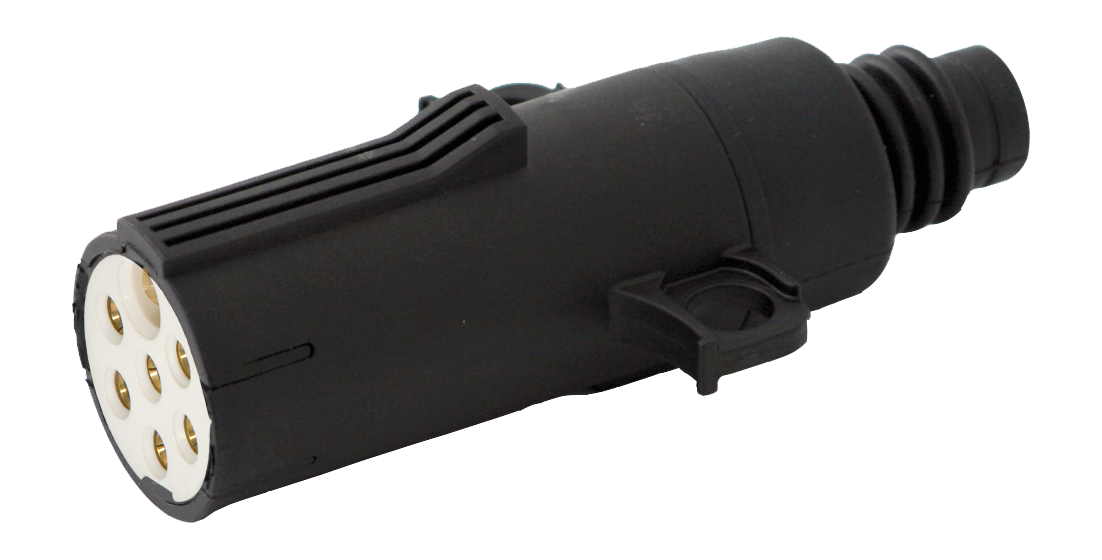

For a useful quote, include related system parts where possible: 111026 7P/24V parking socket (ISO 1185 - Type N, ISO 3731 - Type S), 111239 7P/24V parking socket (ISO 1185 - Type N, ISO 3731 - Type S), 16700 7P coil (without plug/socket)., 211045 7P/24V Plug (ISO 3731 - Type S), 211012 7P/24V Plug (ISO 1185 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
36243
Product family
Socket, Accessories, Seal
Category
Socket, Accessories, Seal
Standard
ISO 1185 - Type N, ISO 3731 - Type S
Voltage
24V
Poles
7P
Industry
commercial vehicles
Related product families
component
External cross-references
Aspöck: 15-5020-007 · Europart: 310000000
For cable diameter
5,60mm - 9,80mm<br> 5,60mm - 9,80mm<br> 5,60mm
No. of seal outlets
triple
Type of seal
seal
Outlet open or closed
kabeluitgang 1 open, kabeluitgang 2 and 3 closed
Suitable for
sockets (part no. 111010 und 111017)

36243

Questions about this reference

Can Erich Jaeger 36243 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

For cable diameter
5,60mm - 9,80mm<br> 5,60mm - 9,80mm<br> 5,60mm
No. of seal outlets
triple
Type of seal
seal
Outlet open or closed
kabeluitgang 1 open, kabeluitgang 2 and 3 closed
Suitable for
sockets (part no. 111010 und 111017)
