Erich Jaeger alternative

241024

15P/24V Plug (ISO 12098 ADR)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Berner 113221
Europart 9500003304
Hella 8JA 007 241-031
Herth & Buss 51305240
Hofmei 2046241024
Scania 1 912 029

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

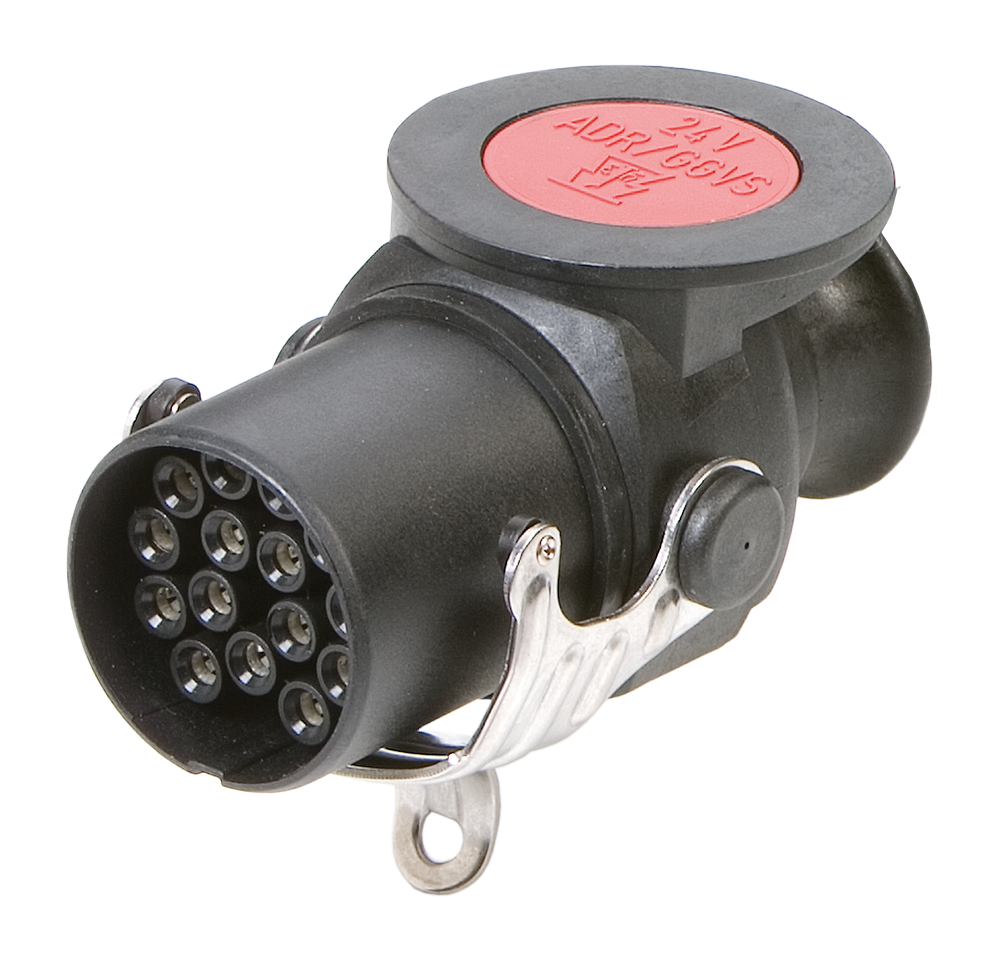

Erich Jaeger 241024 is 15P/24V Plug (ISO 12098 ADR). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 12098 points to the 15-pole 24V truck-trailer connection family; it is normally checked together with the matching 15-pole plug, socket or coil cable. The known selection frame is ISO 12098, 24V, 15P and commercial vehicles.

What does 241024 do?

This page treats 241024 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug.png, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 141053 15P/24V Socket (ISO 12098 ADR), 541128 15P/24V supply cable - with15P/24V supplementary socket (ISO 12098) and 2x 8P connector, 641167 15P/24V Coil (ISO 12098 ADR), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 141168 15P/24V «JAEGER Basic» Socket (ISO 12098 ADR). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
241024
Product family
Category
Standard
ISO 12098
Voltage
24V
Poles
15P
Industry
commercial vehicles
Related product families
component
External cross-references
Berner: 113221 · Europart: 9500003304 · Hella: 8JA 007 241-031 · Herth & Buss: 51305240 · Hofmei: 2046241024 · Scania: 1 912 029
For cable diameter
11,00mm - 13,00mm
Contact termination
crimp contact
Protection
IP 54
Packaging
PE bag
Type of seal
end cap

241024

Questions about this reference

Can Erich Jaeger 241024 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

For cable diameter
11,00mm - 13,00mm
Contact termination
crimp contact
Protection
IP 54
Packaging
PE bag
Type of seal
end cap
