View product
Erich Jaeger alternative
211113

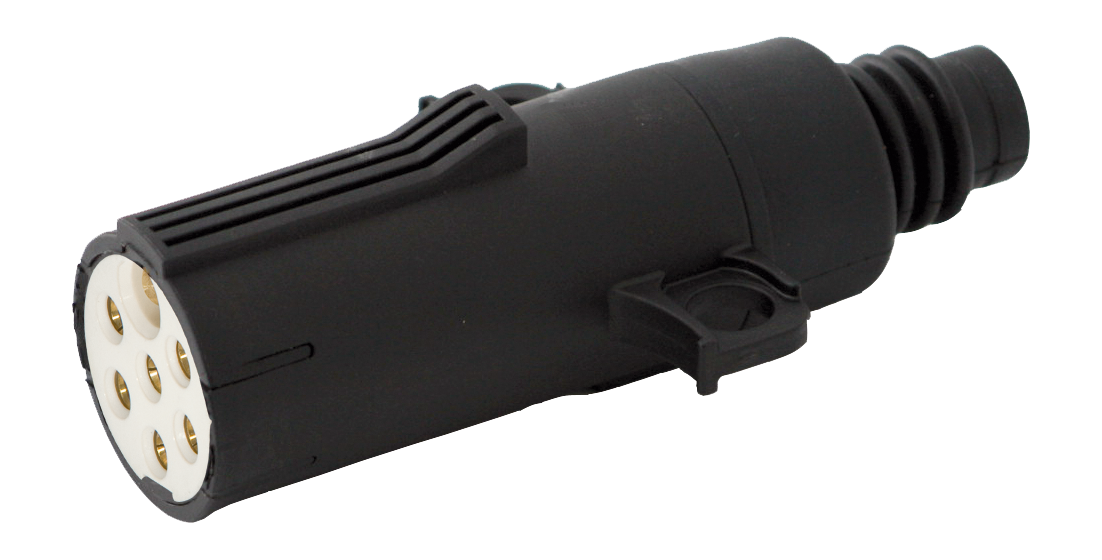

7P/24V Plug (ISO 3731 - Type S)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-PS-000117
7-pole 24V DIN/ISO 3731 S-type plug
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
3731 S-type24V7P
ConnectorRoute price
€1.30
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
DAF
1384309
Europart
4830211113
Febi
172658
Fricke
50751305590
Hella
8JA 008 084-011
Herth & Buss
51305583
Hofmei
673001000
Kögl
6611581
Littelfuse
596100
Phillips
600754903
Reflexallen
13000.8300
Scania
2037736
Schmitz Cargobull
064711
Volvo
85103347
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 211113 is 7P/24V Plug (ISO 3731 - Type S). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 3731 - Type S and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 3731 - Type S, 24V, 7P and commercial vehicles.
What does 211113 do?
This page treats 211113 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: For cable diameter: 10,00mm - 12,00mm, Contact termination: screw contact, Contact surface: standard (CuZn), Protection: IP 44, Cable outlet: grommet, Type of seal: grommet and Housing material: reinforced composite. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 111083 7P/24V Socket (ISO 3731 - Type S), 511121 7P/24V supply cable - with 7P/24V supplementary socket (ISO 3731) and 8P connector, 611081 7P/24V Coil (ISO 3731 - Type S), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111129 7P/24V Socket (ISO 3731 - Type S). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 211113
- Product family
- plug
- Category
- plug
- Standard
- ISO 3731 - Type S
- Voltage
- 24V
- Poles
- 7P
- Industry
- commercial vehicles
- Related product families
- component
- For cable diameter
- 10,00mm - 12,00mm
- Contact termination
- screw contact
- Protection
- IP 44
- Type of seal
- grommet
- Contact insert color
- white
Questions about this reference
Can Erich Jaeger 211113 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- For cable diameter
- 10,00mm - 12,00mm
- Contact termination
- screw contact
- Protection
- IP 44
- Type of seal
- grommet
- Contact insert color
- white
- Product group
- plug
- Standard
- ISO 3731 - Type S
- Industry
- commercial vehicles
- Voltage [in V]
- 24
- Packaging
- retail bag
- Type of seal
- grommet
- Contact surface
- standard (CuZn)
- Housing color
- black
- Housing material
- reinforced composite
- Cable outlet
- grommet
- Contact termination
- screw contact
- No. of poles
- 07
- Protection
- IP 44
- For cable diameter
- 10,00mm - 12,00mm
