Erich Jaeger alternative
211027

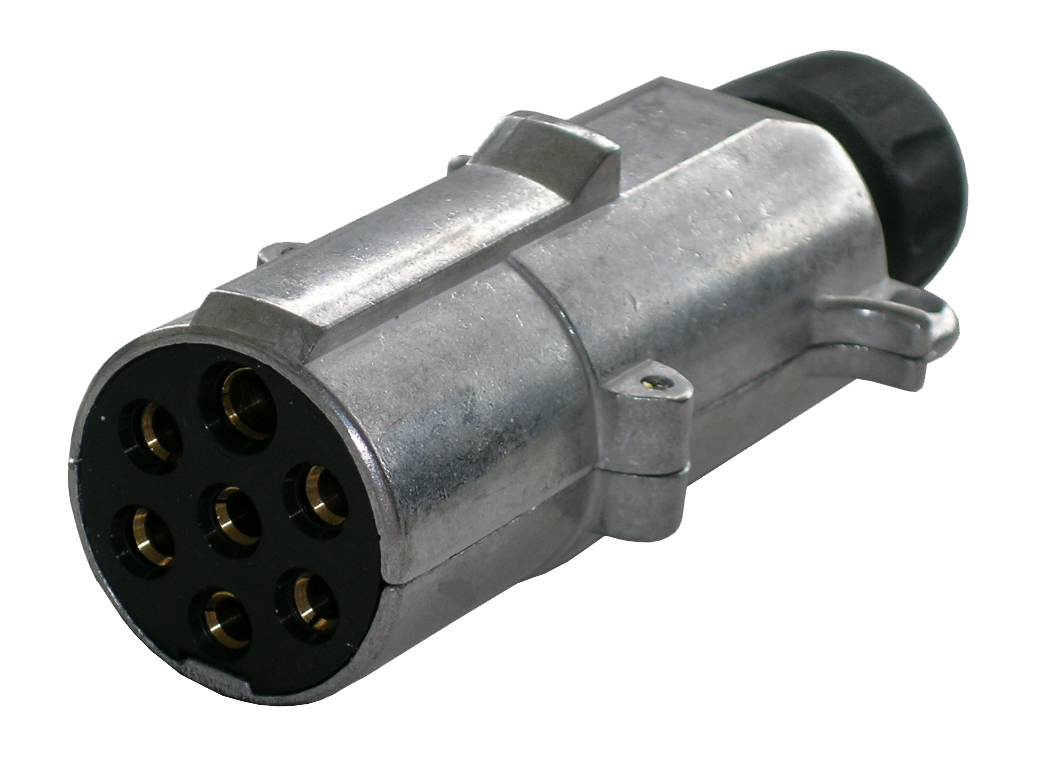

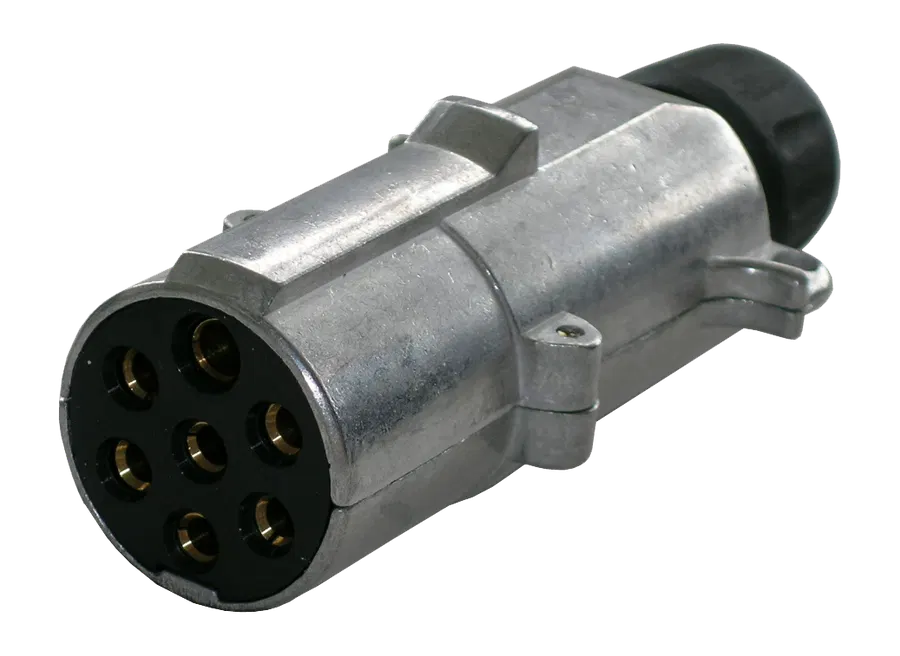

7P/24V Plug (ISO 1185 - Type N)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
Recommended ConnectorRoute route
Available as CR-PS-000119
7-pole 24V DIN/ISO 1185 N-type plug
Keep this Erich Jaeger reference page for identification and engineering checks. Use the ConnectorRoute product page for the active B2B price, lead time, quote request and merged cross-reference set.
1185 N-type24V7P
ConnectorRoute price
on request
Open ConnectorRoute product
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
DAF
152 7114
Europart
9551305586
Hella
8JA 003 831-011
Herth & Buss
51305586
Krone
200833760
Littelfuse
590700
Schmitz Cargobull
1023102
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 211027 is 7P/24V Plug (ISO 1185 - Type N). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1185 - Type N, 24V, 7P and commercial vehicles.
What does 211027 do?
This page treats 211027 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Contact termination: plug-in contact, Protection: IP 44, Cable outlet: cap nut, Type of seal: sealing plug, Housing material: break-proof metal and Housing color: silver-colored. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 111081 7P/24V Socket (ISO 1185 - Type N), 511119 7P/24V supply cable - with 7P/24V socket (ISO 1185) and 8P connector (DIN 72580), 611080 7P/24V Coil (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 111128 7P/24V Socket (ISO 1185 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 211027
- Product family
- plug
- Category
- plug
- Standard
- ISO 1185 - Type N
- Voltage
- 24V
- Poles
- 7P
- Industry
- commercial vehicles
- Related product families
- component
- Contact termination
- plug-in contact
- Protection
- IP 44
- Type of seal
- sealing plug
- Contact insert color
- black
- Housing color
- zilverkleurig
Questions about this reference
Can Erich Jaeger 211027 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Contact termination
- plug-in contact
- Protection
- IP 44
- Type of seal
- sealing plug
- Contact insert color
- black
- Housing color
- zilverkleurig
- Product group
- plug
- Standard
- ISO 1185 - Type N
- Industry
- commercial vehicles
- Voltage [in V]
- 24
- Packaging
- without packaging
- Type of seal
- sealing plug
- Housing color
- silver-colored
- Housing material
- break-proof metal
- Cable outlet
- cap nut
- Contact termination
- plug-in contact
- Features of plug-in contacts
- flat terminal
- No. of poles
- 07
- Protection
- IP 44
- Size of plug-in contacts
- 6.3mm
