Erich Jaeger alternative
201240

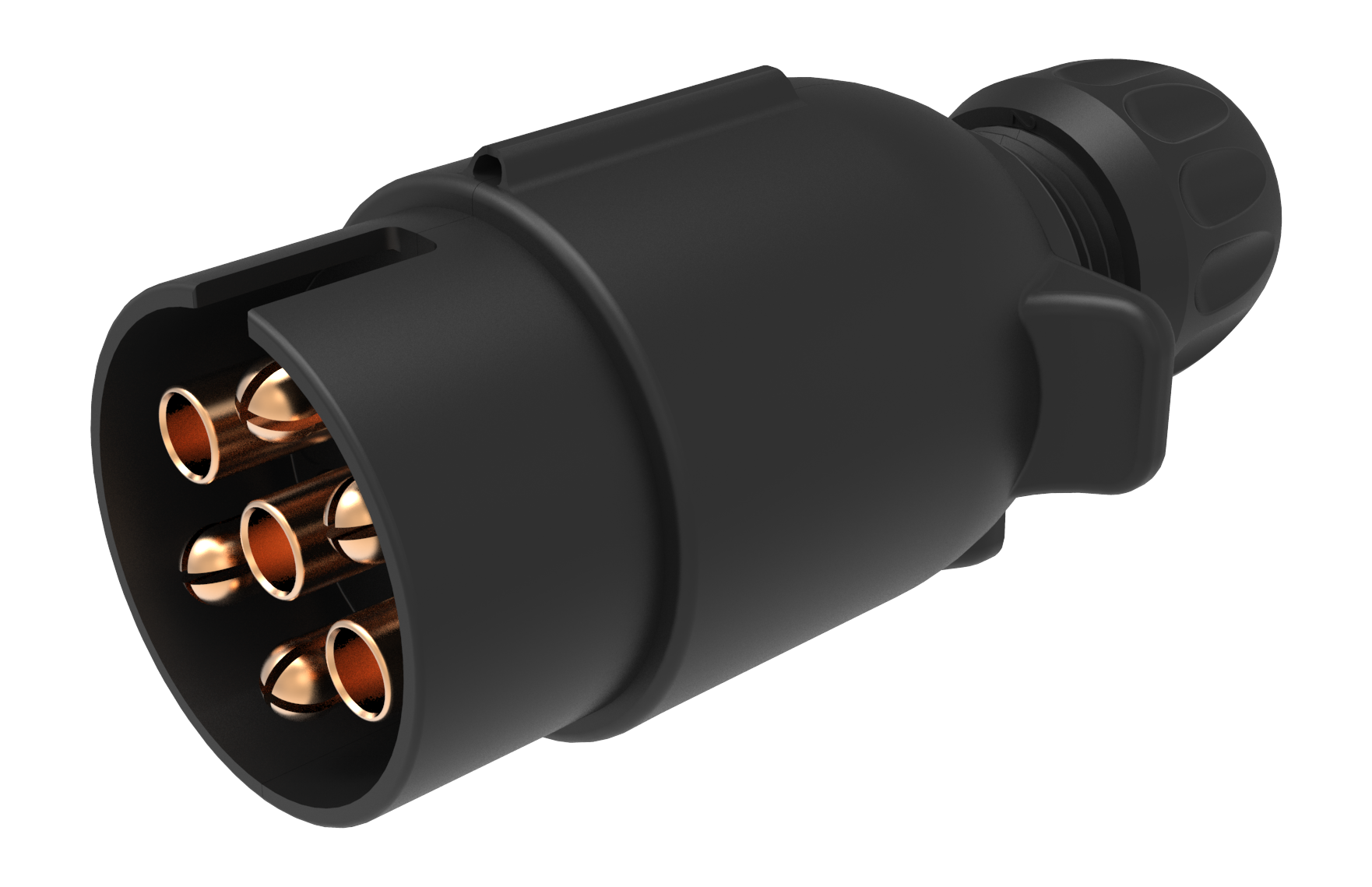

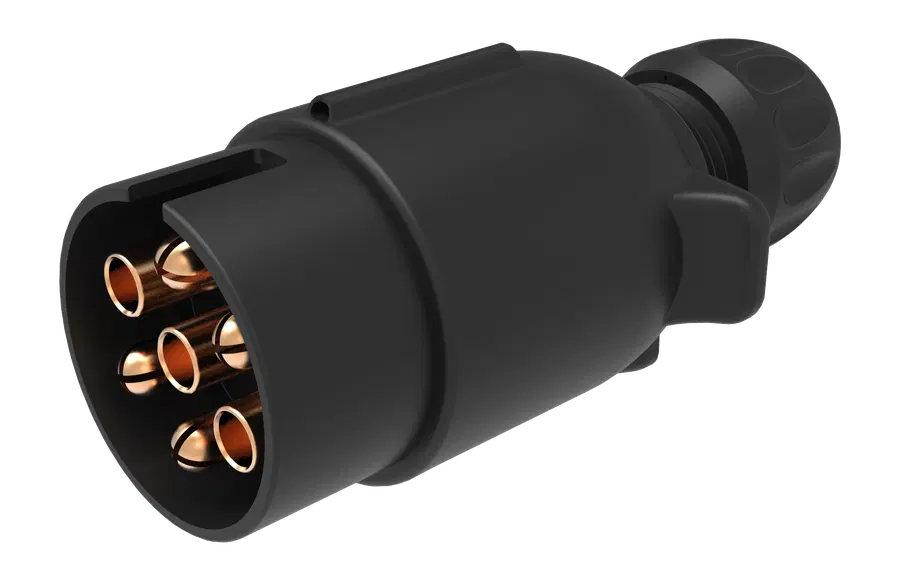

7P/12V Plug (ISO 1724 - Type N)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 201240 is 7P/12V Plug (ISO 1724 - Type N). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 1724 - Type N and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1724 - Type N, 12V, 7P and agriculture, cars.
What does 201240 do?
This page treats 201240 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: For cable diameter: 6,30mm - 8,30mm, Contact termination: screw contact, Contact surface: standard (CuZn), Protection: IP 44, Cable outlet: cap nut, Type of seal: sealing plug and Design/Version: folded version. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 101100 7P/12V Socket (ISO 1724 - Type N), 701015 7P/12V Cable (ISO 1724 - Type N) - with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724), 601040 7P/12V Coil (ISO 1724 - Type N), 311164 Economy "Shorty" mini short adapter - from vehicle (13P/12V) to trailer (7P/12V), 301006 7P/12V Coupler (ISO 1724 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 201240
- Product family
- plug
- Category
- plug
- Standard
- ISO 1724 - Type N
- Voltage
- 12V
- Poles
- 7P
- Industry
- agriculture, cars
- Related product families
- component
- For cable diameter
- 6,30mm - 8,30mm
- Contact termination
- screw contact
- Protection
- IP 44
- Type of seal
- sealing plug
- Design/Version
- folded version
Questions about this reference
Can Erich Jaeger 201240 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- For cable diameter
- 6,30mm - 8,30mm
- Contact termination
- screw contact
- Protection
- IP 44
- Type of seal
- sealing plug
- Design/Version
- folded version
- Product group
- plug
- Standard
- ISO 1724 - Type N
- Industry
- agriculture, cars
- Voltage [in V]
- 12
- Packaging
- without packaging
- Special feature
- Economy version
- Type of seal
- sealing plug
- Product supplement
- Economy
- Contact surface
- standard (CuZn)
- Housing color
- black
- Housing material
- reinforced composite
- Cable outlet
- cap nut
- Contact termination
- screw contact
- No. of poles
- 07
- Protection
- IP 44
- For cable diameter
- 6,30mm - 8,30mm
