C ConnectorRoute

Erich Jaeger alternative

201050

7P/12V Plug (ISO 1724 - Type N)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
AGCO Fendt E400011
Aspöck 13-3000-117
DAF 130 1760
Ford 81 817 350
Hella 8JA 001 930-003
Herth & Buss 51305527
Iveco 81817350
Maehler & Kaege 600998000
Scania 1 912 021

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

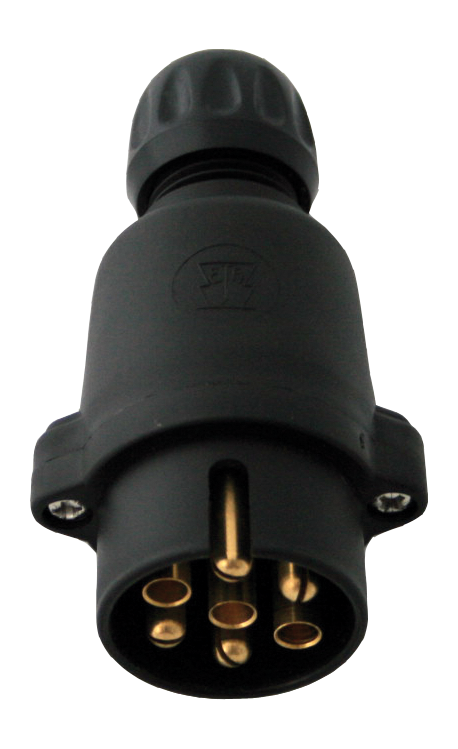

Erich Jaeger 201050 is 7P/12V Plug (ISO 1724 - Type N). This plug is the cable-side half of the connection. It needs to match the socket mechanically and electrically, including contact type, cable diameter, sealing and the exact connector standard. ISO 1724 - Type N and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1724 - Type N, 12V, 7P and agriculture, cars.

What does 201050 do?

This page treats 201050 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a plug.png, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 101100 7P/12V Socket (ISO 1724 - Type N), 701015 7P/12V Cable (ISO 1724 - Type N) - with 7P/12V plug (ISO 1724) and 7P/12V coupler (ISO 1724), 601040 7P/12V Coil (ISO 1724 - Type N), 311164 Economy "Shorty" mini short adapter - from vehicle (13P/12V) to trailer (7P/12V), 301006 7P/12V Coupler (ISO 1724 - Type N). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
201050
Product family
Category
Standard
ISO 1724 - Type N
Voltage
12V
Poles
7P
Industry
agriculture, cars
Related product families
component
External cross-references
AGCO Fendt: E400011 · Aspöck: 13-3000-117 · DAF: 130 1760 · Ford: 81 817 350 · Hella: 8JA 001 930-003 · Herth & Buss: 51305527
For cable diameter
9,20mm - 11,50mm
Contact termination
screw contact
Protection
IP 44
Packaging
without packaging
Branding
ERICH JAEGER

201050

Questions about this reference

Can Erich Jaeger 201050 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

For cable diameter
9,20mm - 11,50mm
Contact termination
screw contact
Protection
IP 44
Packaging
without packaging
Branding
ERICH JAEGER
