View product
Erich Jaeger alternative
111318

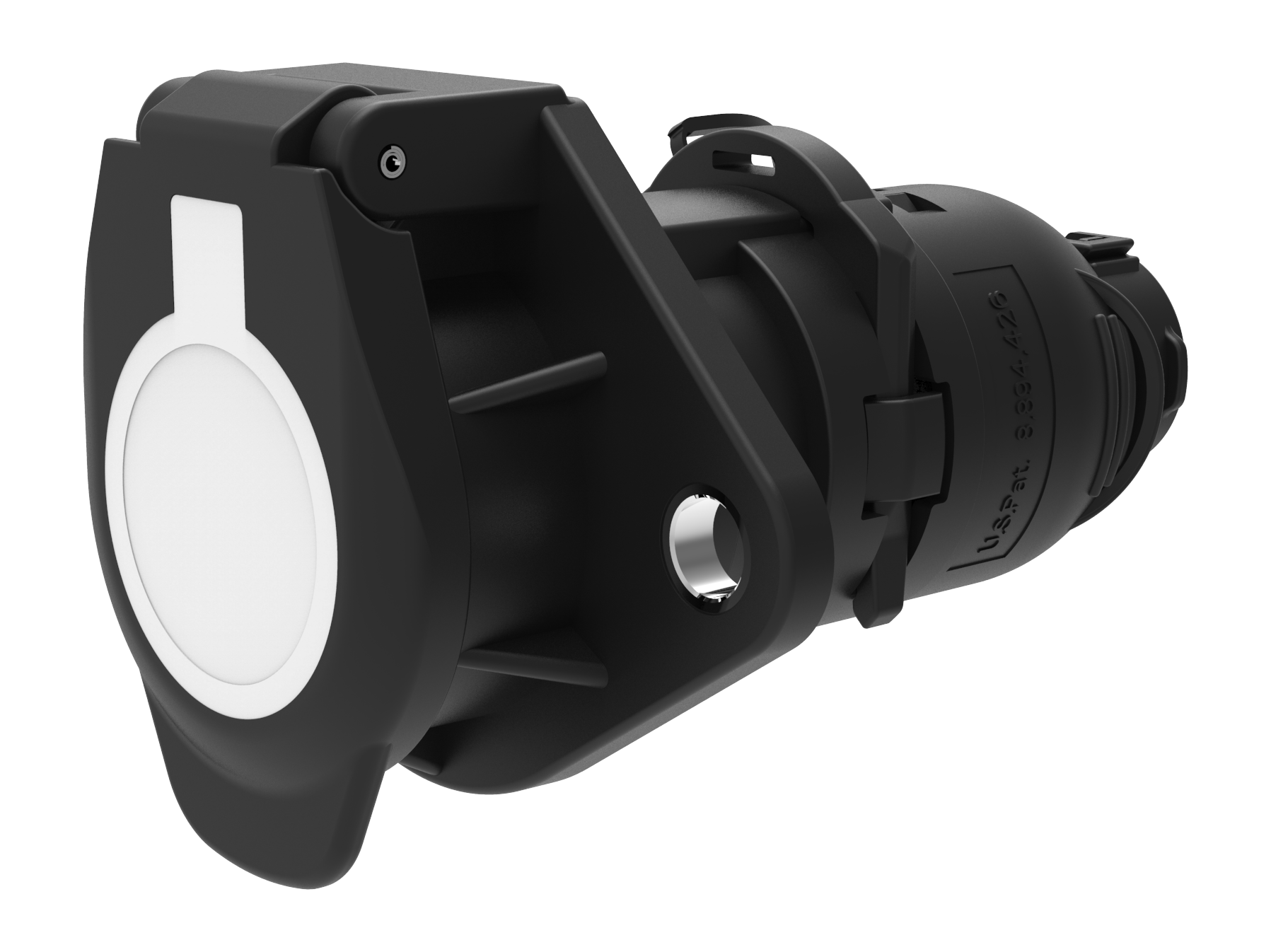

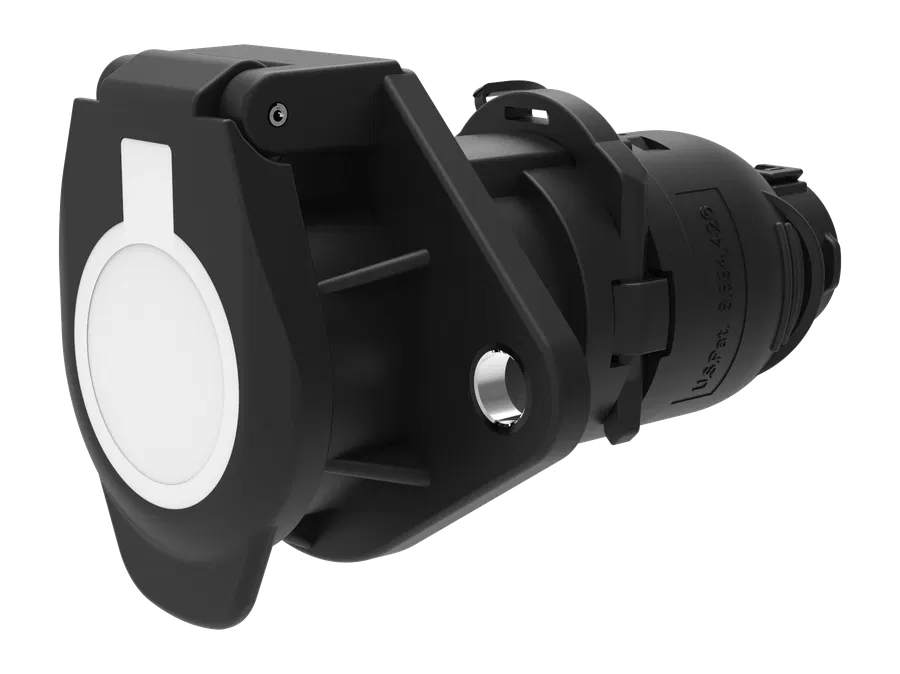

7P/24V 100% waterproof «JAEGER Expert» Socket (ISO 3731 - Type S)
Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.
ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.
External article references
Known cross-reference numbers
These supplier, distributor and vehicle-brand references are used for identification. ConnectorRoute validates the technical replacement route before quoting.
Brand / supplier
Reference numbers
Europart
4830111318
System products
Related products in the same connection route
Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.
Product context
Product description and application
Erich Jaeger 111318 is 7P/24V 100% waterproof «JAEGER Expert» Socket (ISO 3731 - Type S). This socket is the fixed connection point for a 24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. ISO 12098 points to the 15-pole 24V truck-trailer connection family; it is normally checked together with the matching 15-pole plug, socket or coil cable. The known selection frame is ISO 3731 - Type S, 24V, 7P and commercial vehicles.
What does 111318 do?
This page treats 111318 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.
Technical checks before replacing it
The public product data highlights: Contact termination: crimp contact, Contact surface: nickel (Ni), Protection: IP 54, IP X7, IP X9K, Cable outlet: cable outlet 180°, cable outlet 90°, corrugated tube NW17, Design/Version: with reinforcement bushings, Housing material: reinforced composite and Housing color: black. These details matter because a replacement can have the right article description while still failing on cable entry, contact termination, sealing, housing material or installation space.
How ConnectorRoute approaches the alternative
ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.
Products that belong in the same request
For a useful quote, include related system parts where possible: 511121 7P/24V supply cable - with 7P/24V supplementary socket (ISO 3731) and 8P connector, 211013 7P/24V Plug (ISO 3731 - Type S), 611081 7P/24V Coil (ISO 3731 - Type S), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 382521 90° cable exit clamshell. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.
Structured product facts
- Article number
- 111318
- Product family
- socket
- Category
- socket
- Standard
- ISO 3731 - Type S
- Voltage
- 24V
- Poles
- 7P
- Industry
- commercial vehicles
- Related product families
- component
- Contact termination
- crimp contact
- Protection
- IP X9K, IP X7, IP 54
- Packaging
- PE bag
- Cover insert color
- white
- Cover color
- black
Questions about this reference
Can Erich Jaeger 111318 be replaced one-to-one?
Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.
What should I send with an enquiry?
Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.
Why does the page mention related products?
Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.
Technical specifications
Technical data
- Contact termination
- crimp contact
- Protection
- IP X9K, IP X7, IP 54
- Packaging
- PE bag
- Cover insert color
- white
- Cover color
- black
- Product group
- socket
- Standard
- ISO 3731 - Type S
- Industry
- commercial vehicles
- Brand
- JAEGER Expert
- Voltage [in V]
- 24
- Accessories (to be ordered separately)
- «JAEGER Expert» hand crimping tool (ISO 12098, ISO 7638-1, ISO 7638-2, ISO 1185 - Type N, ISO 3731 - Type S)
- Included in delivery
- contact insert, contacts, cover cap, seal
- Included in the scope of delivery
- 7P/24V «JAEGER Expert» contact insert (ISO 3731 - Type S) 7P/24V 100% waterproof «JAEGER Expert» socket housing (ISO 3731 - Type S) 7P/12, 24V «WeatherLock™» Seal (ISO 3731 - Type S, ISO 1185 - Type N, SAE J560 ABS) 180° cable exit clamshell 90° cable exit clamshell contact sleeve
- Design/Version
- with reinforcement bushings
- Special feature
- assembly kit
- Product supplement
- 100% waterproof
- Contact insert color
- yellow
- Contact surface
- nickel (Ni)
- Cover insert color
- white
- Cover material
- reinforced composite
- Housing color
- black
- Housing material
- reinforced composite
- Cable outlet
- cable outlet 180°, cable outlet 90°, corrugated tube NW17
- Contact termination
- crimp contact
- No. of poles
- 07
- Protection
- IP 54, IP X7, IP X9K
