C ConnectorRoute

Erich Jaeger alternative

111008

7P/24V Socket (ISO 1185 - Type N)

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

External article references

Known cross-reference numbers

These supplier, distributor and vehicle-brand references were present in the supplied highrunner overview. Use them for identification; ConnectorRoute still validates the technical replacement route before quoting.

Brand / supplier Reference numbers
Aspöck 13-3128-027
Daimler 006 545 06 26
Europart 4830111008
Hella 8JB 003 833-031
Herth & Buss 51305287
Littelfuse 585200
OEM 51305287, 0065450626, 060138
Reflexallen 6.00753.090
Schmitz Cargobull 060 138
Volvo 1578889
Würth 997635142090

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

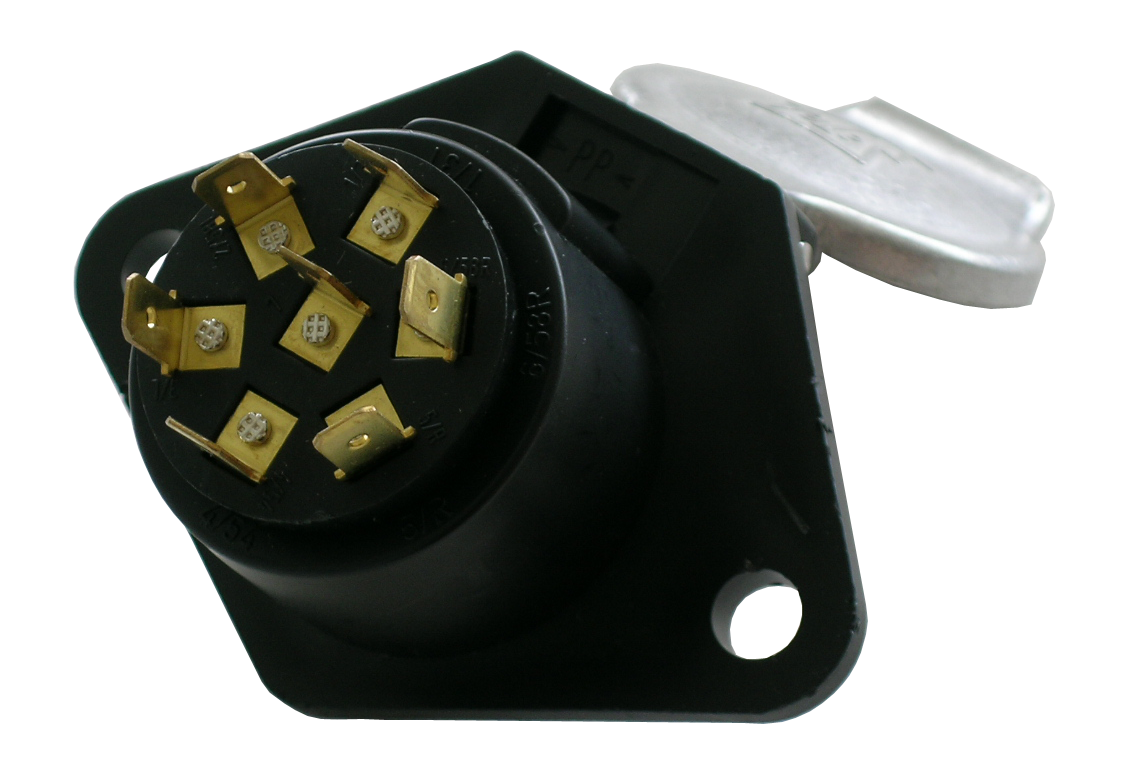

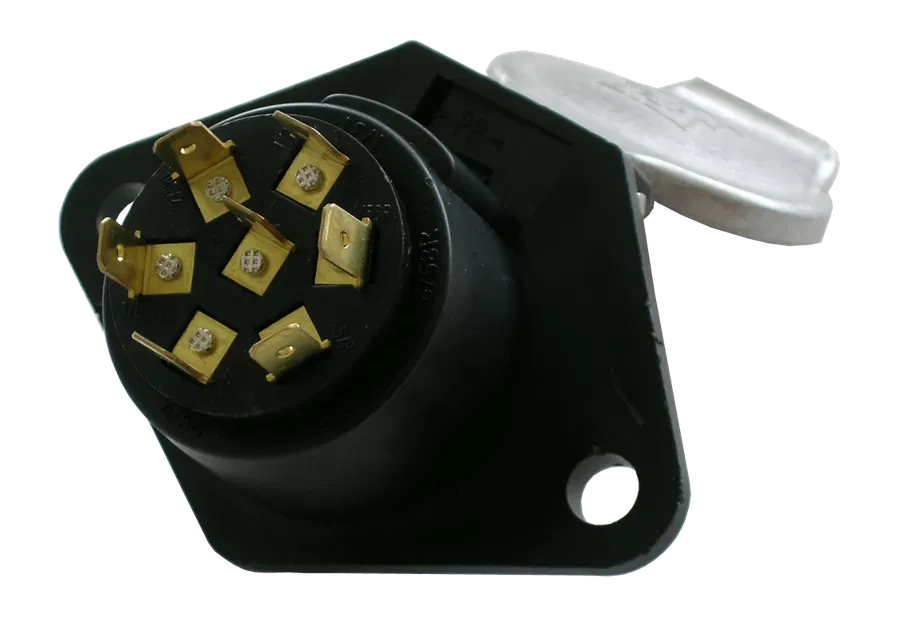

Erich Jaeger 111008 is 7P/24V Socket (ISO 1185 - Type N). This socket is the fixed connection point for a 24V electrical system. It is selected together with the matching plug, coil cable or supply cable, because the connector standard and pole count determine whether the complete truck-trailer connection will work reliably. ISO 1185 - Type N and 24V should be verified against the vehicle or trailer wiring diagram. The known selection frame is ISO 1185 - Type N, 24V, 7P and commercial vehicles.

What does 111008 do?

This page treats 111008 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

For a useful quote, include related system parts where possible: 511119 7P/24V supply cable - with 7P/24V socket (ISO 1185) and 8P connector (DIN 72580), 211009 7P/24V Plug (ISO 1185 - Type N), 611080 7P/24V Coil (ISO 1185 - Type N), 711110 Adapter coil - with 15P/24V plug (ISO 12098) and 2x 7P/24V metal plugs (ISO 1185 + ISO 3731), 382521 90° cable exit clamshell. That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
111008
Product family
socket
Category
socket
Standard
ISO 1185 - Type N
Voltage
24V
Poles
7P
Industry
commercial vehicles
Related product families
component
External cross-references
Aspöck: 13-3128-027 · Daimler: 006 545 06 26 · Europart: 4830111008 · Hella: 8JB 003 833-031 · Herth & Buss: 51305287 · Littelfuse: 585200
Contact termination
plug-in contact
Protection
IP 44
Packaging
without packaging
Cover color
zilverkleurig
Cover material
robuust metaal

111008

Questions about this reference

Can Erich Jaeger 111008 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Contact termination
plug-in contact
Protection
IP 44
Packaging
without packaging
Cover color
zilverkleurig
Cover material
robuust metaal
