Erich Jaeger alternative

034928-4

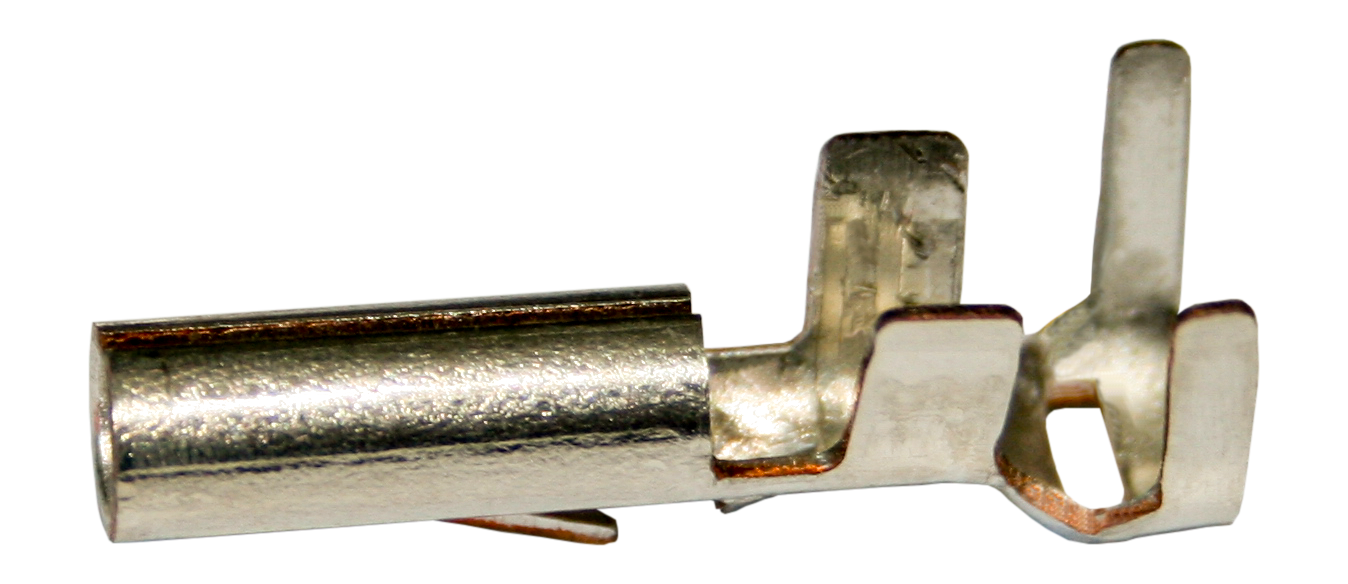

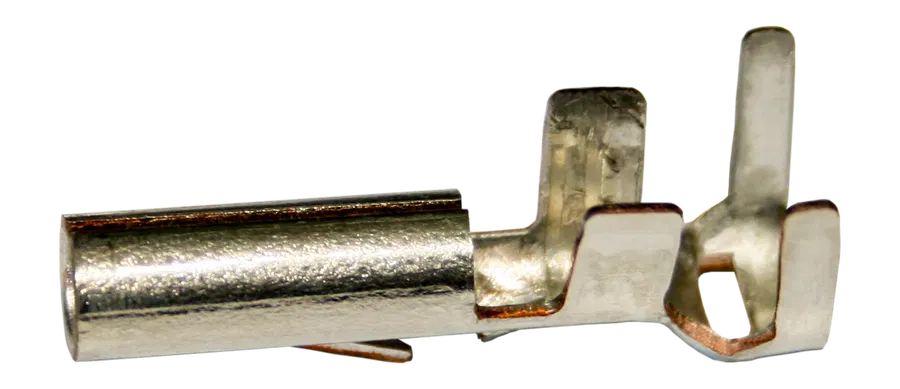

Contact sleeve - for JAEGER Expert and WeatherLock™ sockets

Use this article number as the starting point for a quote: ConnectorRoute checks suitable alternatives, fit, availability, MOQ and lead time before proposing a replacement route.

Request quote Official Erich Jaeger product page

ConnectorRoute is independent and is not affiliated with Erich Jaeger GmbH. Brand and article references are used for identification and cross-reference purposes only.

System products

Products often checked together with this reference: matching plugs, sockets, coil cables, adapters and supply cables. Generic installation material is intentionally excluded.

Product context

Product description and application

Erich Jaeger 034928-4 is Contact sleeve - for JAEGER Expert and WeatherLock™ sockets. This component belongs to a vehicle electrical system. The article number is only the starting point; the practical replacement depends on the connected system, mounting situation and electrical function. SAE J560 and 12V should be verified against the vehicle or trailer wiring diagram. The known selection frame is SAE J560, 12V, 7P and commercial vehicles, agriculture.

What does 034928-4 do?

This page treats 034928-4 as a real vehicle-electrical component, not just as a search term. In practice the part is selected by connector family, electrical standard, voltage, pole count and the way it is mounted or connected in the vehicle. For a socket, accessories, contact, the mating component and cable route are part of the decision.

Technical checks before replacing it

Check the product drawing, connector layout, mounting position, electrical load and mating component before treating another part as equivalent.

How ConnectorRoute approaches the alternative

ConnectorRoute starts with the Erich Jaeger number, then checks the application: vehicle type, yearly volume, existing mating connector, drawings or photos, required approval level and supply continuity. Only after that does an alternative become a quoteable route instead of a guess.

Products that belong in the same request

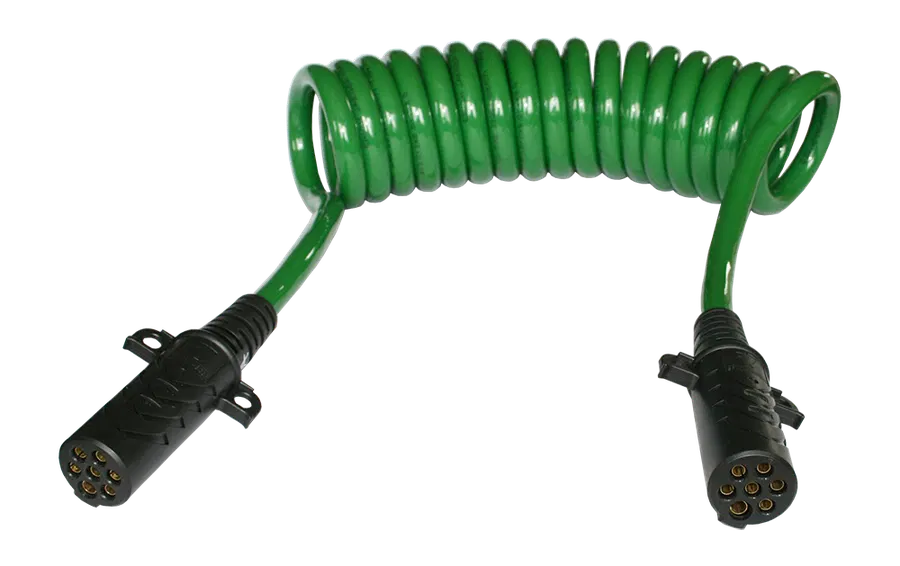

For a useful quote, include related system parts where possible: 501187 7P/12V 100% waterproof «WeatherLock™» Socket (SAE J560 Primary, ABS), 382517 7P/12V 100% waterproof «WeatherLock™» socket housing (SAE J560 Primary, ABS), 201223 7P/12V Plug (SAE J560 Primary, ABS), 211217 7P/12V Plug (SAE J560 Primary), 611224 7P/12V «ExperTech™» Coil (SAE J560 Primary, ABS). That helps prevent solving one article number while leaving the matching plug, socket, coil cable, adapter or supply cable as the next bottleneck.

Structured product facts

Article number
034928-4
Product family
Socket, Accessories, Contact
Category
Socket, Accessories, Contact
Standard
SAE J560
Voltage
12V
Poles
7P
Industry
commercial vehicles, agriculture
Related product families
component
Contact termination
crimp contact
American Wire Gauge (AWG)
8 AWG
Area of application
trekkend voertuig
Contact: for max. wire cross section [in mm²]
8
Contact: for min. wire cross section [in mm²]
8

034928-4

Questions about this reference

Can Erich Jaeger 034928-4 be replaced one-to-one?

Sometimes, but it should not be assumed from the article number alone. The connector standard, pole count, voltage, contact type, seal, cable entry and application need to match before ConnectorRoute confirms a replacement.

What should I send with an enquiry?

Send the Erich Jaeger article number, quantities, yearly demand, photos of the installed part, drawings if available, the mating connector and any vehicle or trailer information.

Why does the page mention related products?

Truck and trailer electrics are system-based. A socket, plug, coil cable, adapter and supply cable often need to be checked together to avoid a partial replacement route.

Technical specifications

Technical data

Contact termination
crimp contact
American Wire Gauge (AWG)
8 AWG
Area of application
trekkend voertuig
Contact: for max. wire cross section [in mm²]
8
Contact: for min. wire cross section [in mm²]
8
